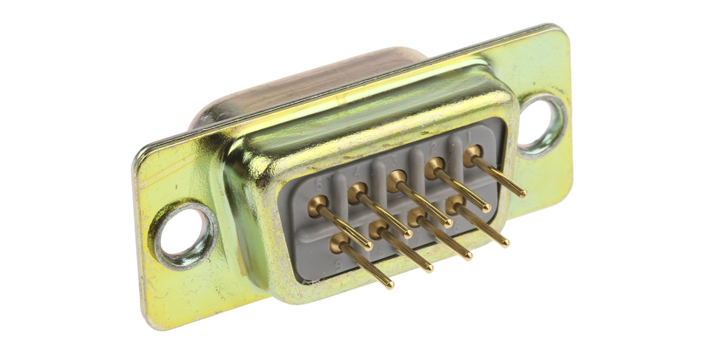

Rs Pro 472758 9 Way Through Hole D-sub Connector Plug, 2.74mm Pitch
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
30.81 mm
Pitch
2.74 mm
Current Rating
5 A
Mounting Type
Through Hole
Depth
12.55 mm
Voltage Rating
750 V ac
Gender
Male
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Number of Contacts
9
Housing Material
PET
Contact Material
Copper Alloy
Dimensions
30.81 x 10.72 x 12.55 mm
This spec is not available in the specification table.
Product Description
₱ 2,995
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 599 |
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
