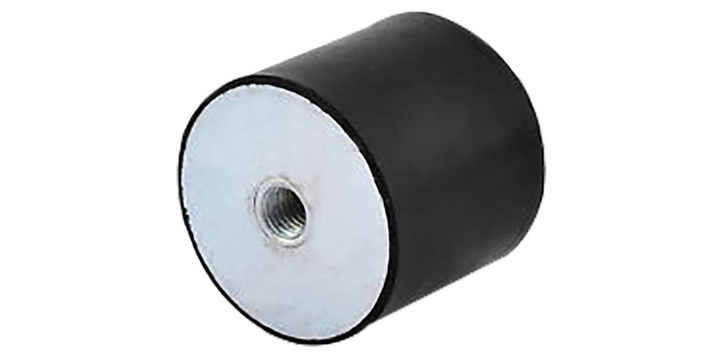

Rs Pro 1264906 M8 Anti Vibration Mount, Female Buffer Foot With 67.86kg Compression Load (1 Bag of 4)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M8
Diameter
30 mm
Overall Height
20 mm
Series
AV Type C
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Female Buffer Foot
Compression Load
67.86 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
20.9 kg
Compression Deflection
2 mm
Product Description
₱ 1,183
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 1,183 |
Quantity:
EA
This item is sold by
SG-4570630354
