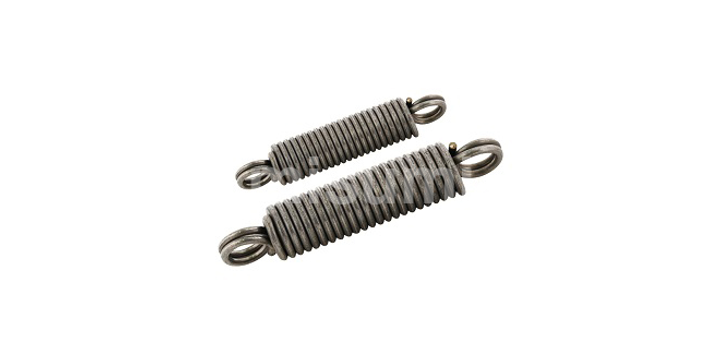

Misumi C-WAWT5-20 Tension Springs Heavy Load, Double Round Hook O.D.5-14
Misumi C-WAWT5-20 Tension Springs Heavy Load, Double Round Hook O.D.5-14
Brand: | MISUMI |
Model: | C-WAWT5-20 |
Specifications
Please select at least one specification below.
Material
SWP-A
Outer Diameter
5
mm
Allowable Load (Configurable Range)
15.01~30.00 N
Max. Load
20.79 N
Wire Diameter
0.8
mm
Free Length
20
mm
Length of Spring Used L+F
24.6
mm
Initial Tension
5.1 N
Standard Spring Constant
3.43 N/mm
Max. Deflection
4.6
mm
Hook Opposing Angle
180° (2 Layers)
Type
Tension Springs
This spec is not available in the specification table.
Product Description
₱ 1,834
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 18 |
Quantity:
EA
MOQ of 100 EA
Bundle of 1 EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
This item is sold by
SG-4887073424
