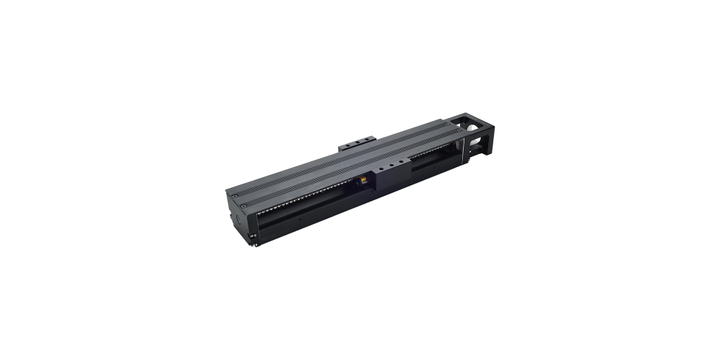

Misumi C-KSC6005-B1-150-H0-CW1 Single Axis Actuators KS60 Standard/KSC60 With Cover
Misumi C-KSC6005-B1-150-H0-CW1 Single Axis Actuators KS60 Standard/KSC60 With Cover
Brand: | MISUMI |
Model: | C-KSC6005-B1-150-H0-CW1 |
Specifications
Please select at least one specification below.
Nominal (Height)
33
mm
Lead
5
mm
Table Width
42
mm
Number of Sensors
1
Base Length
150
mm
Table Length
51
mm
Ball Screw Shaft Dia. [Ø]
12
mm
Drive Method
Ball Screw
Basic Load Rating: Static Load
21462 N
Basic Load Rating: Dynamic Load
13230 N
Positioning Repeatability
±5 µm
Maximum Velocity
390 mm/s
Accuracy
Standard Grade
This spec is not available in the specification table.
Motor Mounting Orientation
Straight
This spec is not available in the specification table.
Grease
Standard
This spec is not available in the specification table.
Allowable Static Moment MP
152 N•m
This spec is not available in the specification table.
Allowable Static Moment MY
152 N•m
This spec is not available in the specification table.
Allowable Static Moment MR
419 N•m
This spec is not available in the specification table.
Product Description
₱ 14,042
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 14,042 |
Quantity:
EA
Lead time of 9 working days required.
Item will be ready to dispatch within the lead time specified.
This item is sold by
SG-4887073424
