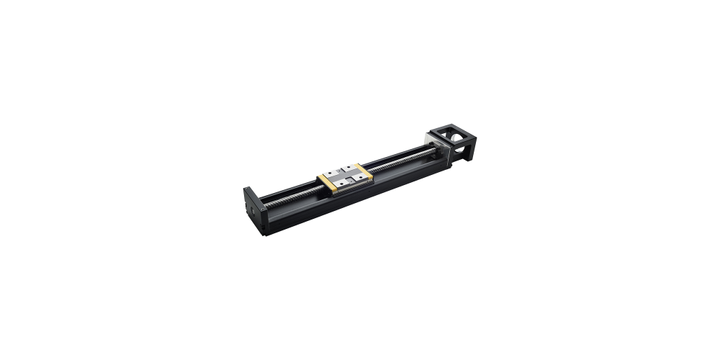

Misumi C-KSC4001-B1-100-F0-CW2 Single Axis Actuators KS40 Standard/KSC40 With Cover
Misumi C-KSC4001-B1-100-F0-CW2 Single Axis Actuators KS40 Standard/KSC40 With Cover
Brand: | MISUMI |
Model: | C-KSC4001-B1-100-F0-CW2 |
Specifications
Please select at least one specification below.
Nominal (Height)
20
mm
Lead
1
mm
Table Width
26
mm
Number of Sensors
2
Base Length
100
mm
Table Length
33
mm
Ball Screw Shaft Dia. [Ø]
8
mm
Drive Method
Ball Screw
Basic Load Rating: Static Load
6468 N
Basic Load Rating: Dynamic Load
3920 N
Positioning Repeatability
±5 µm
Maximum Velocity
190 mm/s
Accuracy
Standard Grade
This spec is not available in the specification table.
Motor Mounting Orientation
Straight
This spec is not available in the specification table.
Grease
Standard
This spec is not available in the specification table.
Allowable Static Moment MP
33 N•m
This spec is not available in the specification table.
Allowable Static Moment MY
33 N•m
This spec is not available in the specification table.
Allowable Static Moment MR
81 N•m
This spec is not available in the specification table.
Product Description
₱ 17,750
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 17,750 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
This item is sold by
SG-4887073424
