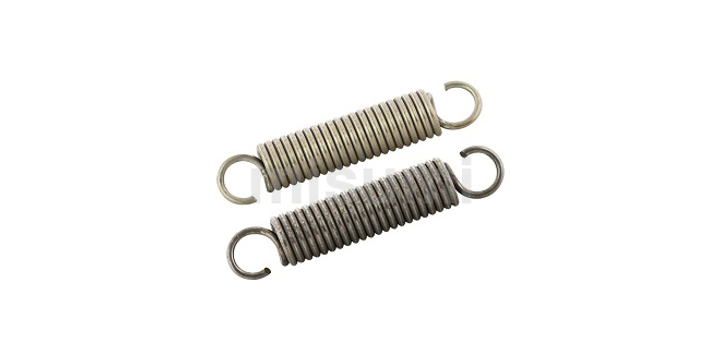

Misumi C-AWS3-10 Tension Springs Medium Light / Medium Load O.D.3-10
Specifications
Please select at least one specification below.
Material
SWP-A
Outer Diameter
3
mm
Allowable Load (Configurable Range)
3.51~8.00 N
Max. Load
4.41 N
Wire Diameter
0.4
mm
Free Length
10
mm
Length of Spring Used L+F
13.5
mm
Initial Tension
0.88 N
Standard Spring Constant
0.98 N/mm
Max. Deflection
3.5
mm
Hook Opposing Angle
180° (Standard)
Type
Tension Springs
This spec is not available in the specification table.
Product Description
₱ 1,747
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 17 |
Quantity:
EA
MOQ of 100 EA
Bundle of 1 EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
