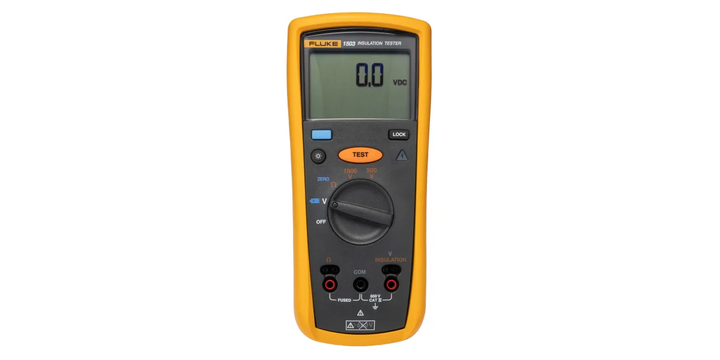

Fluke 1503 Insulation Tester, 500V Min, 1000V Max, 2GΩ Max, Cat Iii 600V

• Model Number p 1503
• Tester Type Insulation Tester
• Maximum Test Voltage 1000V
• Minimum Test Voltage 500V
• Maximum Insulation Resistance Measurement 2GΩ
• Display Type Backlit LCD
• Test Current 200mA
• Battery Life 1000 Insulation Tests
• Battery Type AA
• Power Source Battery
• Minimum Operating Temperature -20°C
• Maximum Operating Temperature +50°C
• Safety Category CAT III 600 V, CAT IV 600V
• Safety Category Level CAT III, CAT IV
• Safety Category Voltage 600V
• Height 50mm
• Dimensions 203 x 100 x 50mm
• Weight 550g
• Width 100mm
• Length 203mm

The Fluke 1503 2G ohm electrical insulation tester is compact, rugged, reliable and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning and preventative maintenance applications. The 1503 insulation tester comes with a remote probe due to which repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included. The testing voltage of this tester ranges between 500V and 1000V. This 1503 device is battery powered and has 4 AA battery type.

Features & Benefits

• Battery-powered for portability and convenience
• Compatible with FLUKE TPAK magnetic hanging system (331-7402) for simple storage and hands-free testing
• Safe for use in harsh environments, thanks to its broad operating temperature range between -20°C and +55°C
• 200mA Continuity
• AC/DC voltage ranges between 0.1V and 600V
• Auto discharge of capacitive voltage for added user protection
• Insulation test ranges between 0.1MΩ and 2000MΩ
L• ive circuit detection prevents insulation test if voltage > 30V is detected for added user protection
• Read measurements easily with large, graphic backlit display
• Remote probe, test leads, probes and alligator clips included with each tester
• Resistance ranges between 0.01Ω and 20.00kΩ
• Save battery power with auto power OFF

Applications

• Medical equipment
• IT systems
• Aerospace engineering
• Power plants
