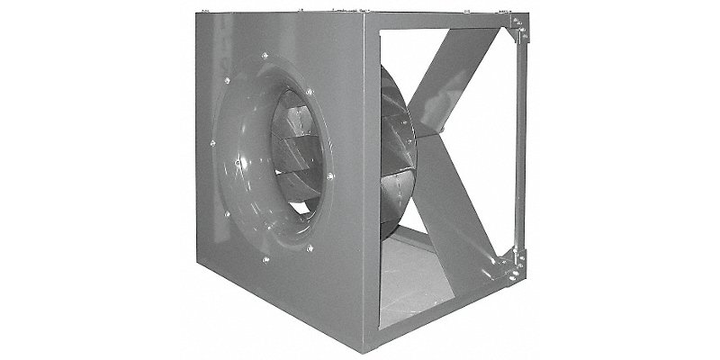

Dayton 7AK88 Plenum Fan Whl Dia 13 1/2 in w/ Dr Pkg
Dayton 7AK88 Plenum Fan Whl Dia 13 1/2 in w/ Dr Pkg
Brand:
DAYTON
Model:
7AK88
Specifications
infotip-icon
View other Plenum Fans dimensions or variations
Please select at least one specification below.
Drive Type
Belt Drive
This spec is not available in the specification table.
Wheel Diameter
13-1/2"
This spec is not available in the specification table.
Phase
3
This spec is not available in the specification table.
Rough Opening Height
18"
This spec is not available in the specification table.
Nameplate Voltage
208-230/460 V AC
This spec is not available in the specification table.
Motor Horsepower
1/4 hp
This spec is not available in the specification table.
Wheel Material
Aluminum
This spec is not available in the specification table.
Inlet Diameter
8-1/2"
This spec is not available in the specification table.
Assembly
Unassembled
This spec is not available in the specification table.
Frame Material
Galvanized
This spec is not available in the specification table.
Maximum Static Pressure
1-1/4 in wc
This spec is not available in the specification table.
Motor Enclosure Design
Open Dripproof (ODP)
This spec is not available in the specification table.
Rough Opening Width
18"
This spec is not available in the specification table.
Airflow @ 0.000 in SP
1768 cfm
This spec is not available in the specification table.
Airflow @ 0.250 in SP
1647 cfm
This spec is not available in the specification table.
Airflow @ 0.500 in SP
1507 cfm
This spec is not available in the specification table.
Airflow @ 0.750 in SP
1332 cfm
This spec is not available in the specification table.
Airflow @ 1.000 in SP
1117 cfm
This spec is not available in the specification table.
Airflow @ 1.250 in SP
434 cfm
This spec is not available in the specification table.
Product Description
₱ 77,765
UnitsDiscountUnit Price
1-₱ 77,765
Quantity:
EA
Lead time of 6 working days required.
