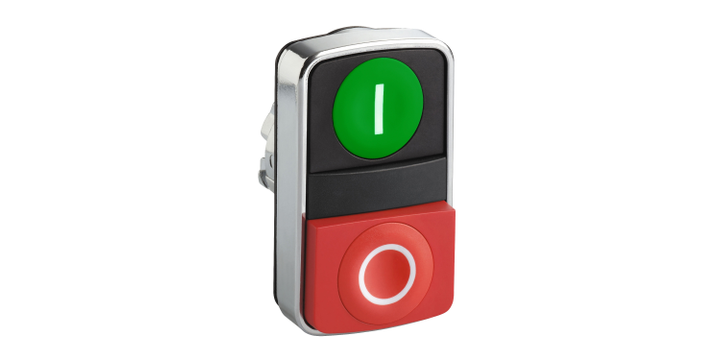

Schneider Electric ZB4BL7341 Head for Double Headed Push Button, Harmony XB4, Metal, 22mm, 1 Green Flush Marked I + 1 Red Projecting Marked O
Schneider Electric ZB4BL7341 Head for Double Headed Push Button, Harmony XB4, Metal, 22mm, 1 Green Flush Marked I + 1 Red Projecting Marked O
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB4BL7341 |
Specifications
Please select at least one specification below.
Mounting Diameter
22 mm
Shape of Signaling Unit Head
Rectangular
Bezel Material
Chromium plated metal
Head Type
Standard
Range of Product
Harmony XB4
Standard
IEC 60947-5-4
IEC 60947-1
IEC 60947-5-1
JIS C8201-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-5
JIS C8201-1
IP Degree of Protection
IP69 conforming to IEC 60529
IP66 conforming to IEC 60529
IP69K
Ambient Air Temperature for Operation
-40…70 °C
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Resistance to High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Electrical Composition Code
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting
C14 for <2 contacts using single blocks in front mounting
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Type of Operator
spring return
This spec is not available in the specification table.
Operator Profile
Green flush, I (white)
Red projecting, O (white)
This spec is not available in the specification table.
Colour of Marking
White marking when green, red or black caps
Black marking when white caps
This spec is not available in the specification table.
Operators Description
Green ''I'' - red ''O''
This spec is not available in the specification table.
Device Short Name
ZB4
This spec is not available in the specification table.
Product or Component Type
Head for double-headed push-button
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Device Presentation
Basic element
This spec is not available in the specification table.
Certifications
GL
CSA
DNV
UL listed
LROS (Lloyds register of shipping)
BV
This spec is not available in the specification table.
IK Degree of Protection
IK03 conforming to IEC 50102
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I conforming to IEC 60536
This spec is not available in the specification table.
Product Description
RM 84.76
