Schneider Electric SSM1D212BD Harmony Relay Series Solid State Interface Relay, 32 V Dc Control, 12 a Load, Din Rail Mount

View Brand

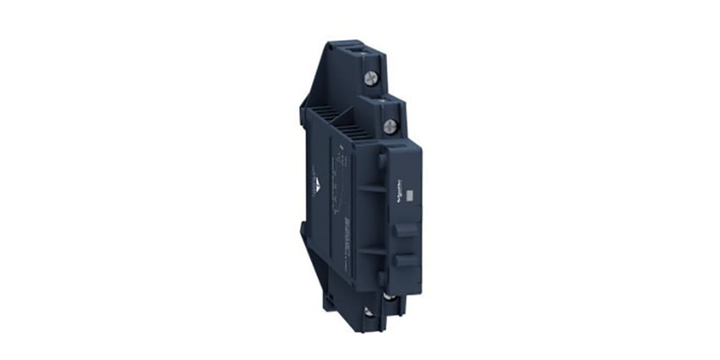

Schneider Electric SSM1D212BD Harmony Relay Series Solid State Interface Relay, 32 V Dc Control, 12 a Load, Din Rail Mount

Brand:	SCHNEIDER ELECTRIC
Model:	SSM1D212BD

Specifications

View other Solid State Interface Relays dimensions or variations

Maximum Load Current

12 A

Maximum Load Voltage

60 V dc

Minimum Load Voltage

1 V dc

Minimum Control Voltage

4 V dc

Maximum Control Voltage

32 V dc

Switching Type

Control Voltage Range

4 → 32 V dc

Load Voltage Range

1 → 60 V dc

Minimum Load Current

0.0025 A

Maximum Turn On Time

0.6 ms

Series

Harmony Relay

Length

18.29 mm

Mounting Type

DIN Rail

Number of Poles

Depth

83.69 mm

Height

87.6 mm

Dimensions

18.29 x 83.69 x 87.66 mm

Operating Temperature Range

-30 → +80°C

Contact Configuration

SPST

Special Features

Integrated Heat Sinks for Effective Thermal Management & Space Savings

Standards Met

CE, CSA, UL

Terminal Type

Screw

Capacitance

10 pF

Manufacturer Part No.

SSM1D212BD

Off State Leakage Current

0.1 mA

Better World Product

Yes

Better World Verification

Green Premium

Output Device

MOSFET

Product Description

RM 260.09
