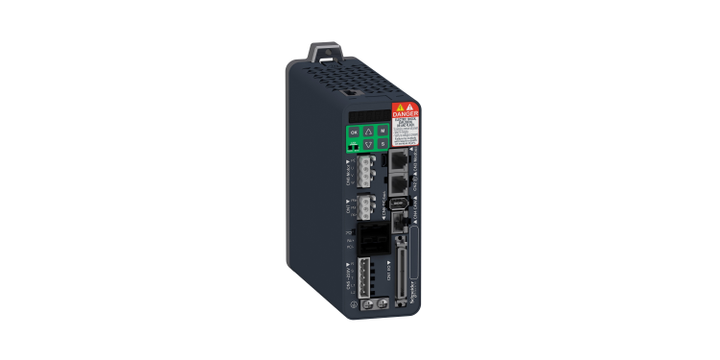

Schneider Electric LXM28EU07M3X Motion Servo Drive, Lexium 28, Single and Three Phase, 200 to 240V, 750W, Ethercat
Schneider Electric LXM28EU07M3X Motion Servo Drive, Lexium 28, Single and Three Phase, 200 to 240V, 750W, Ethercat
Product Description

Schneider Electric LXM28EU07M3X Motion Servo Drive, Lexium 28, Single and Three Phase, 200 to 240V, 750W, Ethercat

  • Range of Product: Lexium 28
  • Device Short Name: LXM28E
  • Product or Component Type: Motion Servo Drive
  • Format of the Drive: Compact Housing
  • Line Current:
    • 6 A 181.8% at 220 V, Single Phase
    • 6 A 160.6% at 220 V, Three Phase
  • Network Number of Phases: Single or Three Phases
  • [Us] Rated Supply Voltage:
    • 200...240 V (-10...15%) for Three Phase
    • 200...240 V (-20...15%) for Single Phase
  • Supply Voltage Limits:
    • 200…255 V Three Phase
    • 170…255 V Single Phase
  • Supply Frequency: 50/60 Hz (-5...5%)
  • Network Frequency: 47.5...63 Hz
  • EMC Filter: Without EMC Filter
  • Continuous Output Current: 4.5 A at 16 kHz
  • Output Current 3s Peak: 13.5 A at 220 V
  • Continuous Power: 750 W at 220 V
  • Nominal Power: 0.75 kW at 220 V 16 kHz
  • Switching Frequency: 16 kHz
  • Overvoltage Category: III
  • Maximum Leakage Current: 1.3 mA
  • Output Voltage: <= Power Supply Voltage
  • Electrical Isolation: Between Power and Control
  • Type of Cable: Shielded Motor Cable (Temperature: 0…55 °C), Copper
  • Electrical Connection:
    • Spring Terminal, Clamping Capacity: 0.82...1 mm², AWG 18 (L1-L2)
    • Spring Terminal, Clamping Capacity: 0.82...1 mm², AWG 18 (R, S, T)
    • Spring Terminal, Clamping Capacity: 0.82...1 mm², AWG 18 (U, V, W, PE)
    • Spring Terminal, Clamping Capacity: 0.82...1 mm², AWG 18 (PA/+, PBe)
  • Discrete Input Number: 8 Programmable (CN1), 2 Fast Capture (CN1), 1 Safety Function STO (CN9)
  • Discrete Input Voltage: 24 V DC for Logic
  • Discrete Input Logic: Positive or Negative (CN1)
  • Discrete Output Number: 5 Logic Output (CN1) at 12...24 V DC, 1 Pulse Train Output (PTO) (CN1)
  • Discrete Output Voltage: 12...24 V DC
  • Discrete Output Logic: Positive or Negative (CN1)
  • Control Signal Type: Servo Motor Encoder Feedback CN2
  • Protection Type: Against Reverse Polarity, Short-Circuits, Overcurrent, Overvoltage, Undervoltage, Overheating, Overload, Overspeed (Motor)
  • Safety Function: STO (Safe Torque Off), Integrated
  • Safety Level:
    • SIL 2 conforming to IEC 61800-5-2: 2007
    • SIL 2 conforming to IEC 61508-1: 2010
    • PL d/category 3 conforming to ISO 13849-1: 2008
    • SIL 2 conforming to ISO 13849-1: 2009/AC
    • SIL 2 conforming to IEC 60204-1: 2006
    • SIL 2 conforming to IEC 60204-1: 2009/A1
    • SIL 2 conforming to IEC 60204-1: 2010/AC
    • SIL 2 conforming to IEC 62061: 2012
  • Communication interface: EtherCAT, Integrated
  • Connector Type: RJ45 (CN4) for EtherCAT
  • Method of Access: Slave
  • Transmission Rate: 100 Mbit/s for EtherCAT
  • Physical Interface: RS485 for Modbus Serial Line Slave
  • Status LED: 1 LED (Red) DC Bus Energized, 1 LED (Multi-colour) N.RUN, 1 LED (Multi-colour) N.ERR, 2 LEDs (Green) Link (Link Status), 2 LEDs (Yellow) Activity
  • Signalling Function: Servo Status and Fault Codes, Five 7-Segment Display Units
  • Marking: CE, CULus
  • Type of Cooling: Fan
  • Operating Position: Vertical
  • Product Compatibility: Servo Motor BCH2 (130 mm, 1 Motor Stacks) at 500 W, Servo Motor (80 mm, 2 Motor Stacks) at 750 W, Servo Motor (130 mm, 1 Motor Stacks) at 600 W
  • Width: 55 mm
  • Height: 150 mm
  • Depth: 146 mm
  • Net Weight: 1 kg
  • Output current 3s peak 2: 13.5 A at 220 V
  • Output current 3s peak 3: 13.5 A at 220 V
  • Electromagnetic Compatibility: Conducted Emission - Test Level: Level 3 Category C3 Conforming to IEC 61800-3
  • Standards: IEC 61800-5-1
  • Product Certifications: CSA, CE, CULus
  • IP Degree of Protection: IP20
  • Vibration Resistance: 3M4 Amplitude = 3 mm (f = 9…200 Hz) Conforming to IEC 60721-3-3
  • Shock Resistance: 10 gn, Type I Conforming to IEC 60721-3-3
  • Relative Humidity: 5…95% without Condensation
  • Ambient Air Temperature:
    • For Operation: 0…55 °C
    • For Storage: -25…65 °C
  • Operating Altitude:
    • <= 1000 m without Derating
    • > 1000...2000 m 1% per 100 m
