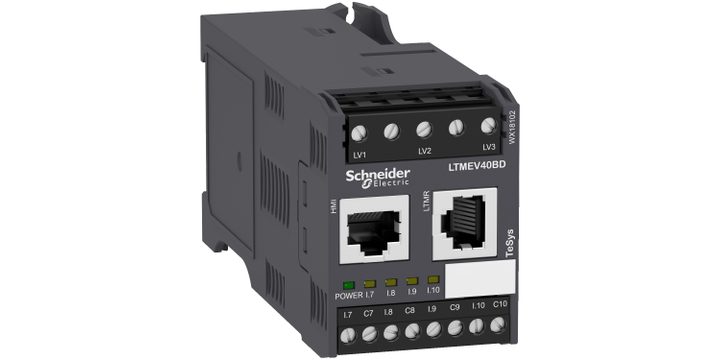

Schneider Electric LTMEV40BD Extension Module, Tesys T, 4 Inputs, 24VDC, for Ltmr Controller
Schneider Electric LTMEV40BD Extension Module, Tesys T, 4 Inputs, 24VDC, for Ltmr Controller
Brand: | SCHNEIDER ELECTRIC |
Model: | LTMEV40BD |
Specifications
Please select at least one specification below.
Operating Temperature
-20…60 °C
Standards and Certifications
IEC 60947-4-1
UL 508
EN 60947-4-1
IACS E10
CSA C22.2 No 14
Width
45 mm
Depth
120.7 mm
[Ui] Rated Insulation Voltage
690 V conforming to EN/IEC 60947-1
690 V conforming to CSA C22.2 No 14
690 V conforming to UL 508
[Uimp] Rated Impulse Withstand Voltage
6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1
0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1
Ip Degree Of Protection
IP20
Height
61 mm
Range
TeSys
This spec is not available in the specification table.
Product Name
TeSys T
This spec is not available in the specification table.
Device Short Name
LTME
This spec is not available in the specification table.
Device Application
Equipment monitoring and control
This spec is not available in the specification table.
Connection Pitch
5.08 mm
This spec is not available in the specification table.
Compatibility Code
LTME
This spec is not available in the specification table.
Connections - Terminals
Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end
Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end
Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end
Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end
Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end
Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end
Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end
Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end
This spec is not available in the specification table.
Overvoltage Category
III
This spec is not available in the specification table.
Pollution Degree
3
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…80 °C
This spec is not available in the specification table.
Operating Altitude
<= 2000 m without derating
This spec is not available in the specification table.
Tightening Torque
Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm
This spec is not available in the specification table.
Measurement Accuracy
1 % voltage (100...830 V)
3 % power factor
5 % active and reactive power
This spec is not available in the specification table.
Electromagnetic Compatibility
Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4
Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4
Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6
Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
Voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5
Voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
This spec is not available in the specification table.
Maximum Operating Rate
1800 cyc/h
This spec is not available in the specification table.
Product Certifications
UL
NOM
ATEX
BV
CSA
EAC
RINA
LROS (Lloyds register of shipping)
DNV
ABS
GL
KERI
RMRoS
C-Tick
CCC
This spec is not available in the specification table.
Protective Treatment
12 x 24 hour cycles conforming to EN/IEC 60068-2-30
48 h conforming to EN/IEC 60070-2-11
TH conforming to EN/IEC 60068
This spec is not available in the specification table.
Mechanical Robustness
Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6
Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6
This spec is not available in the specification table.
Fire Resistance
650 °C conforming to EN/IEC 60695-2-12
960 °C conforming to UL 94
This spec is not available in the specification table.
Range Compatibility
TeSys TeSys T LTMR motor controller
This spec is not available in the specification table.
Supply
Via the controller
This spec is not available in the specification table.
Logic Input Number
4
This spec is not available in the specification table.
Input Current
7 mA
This spec is not available in the specification table.
Current State 0 Guaranteed
Logic input: < 5 V and <= 15 mA for 5 ms
This spec is not available in the specification table.
Current State 1 Guaranteed
Logic input: < 15 V and 2...15 mA for 15 ms
This spec is not available in the specification table.
Maximum Output Switching Frequency
2 Hz
This spec is not available in the specification table.
Contacts Type And Composition
Without
This spec is not available in the specification table.
Metering Type
Voltage U21, U32, U13, V1, V2, V3
Imbalance voltage
Frequency
Calculated active and reactive energy (+/- W.h, +/- VAR.h)
Reactive power Q, Q1, Q2, Q3
Power factor
Active power P, P1, P2, P3
This spec is not available in the specification table.
Product Description
