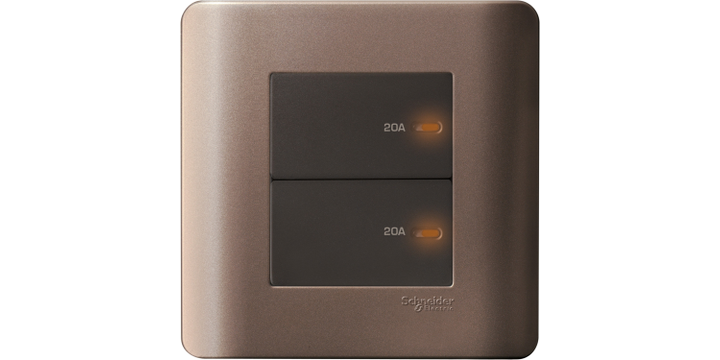

Schneider Electric E8432D20_SZ_G2 Full-flat Dp Switch With Neon, Zencole, 20A, 2 Gang, Silver Bronze
Schneider Electric E8432D20_SZ_G2 Full-flat Dp Switch With Neon, Zencole, 20A, 2 Gang, Silver Bronze
Brand: | SCHNEIDER ELECTRIC |
Model: | E8432D20_SZ_G2 |
Specifications
Please select at least one specification below.
Width
87 mm
Material
Polycarbonate + GF 20 %: grid plate
Polycarbonate: base
Polycarbonate: cover
Polycarbonate: dolly
Polycarbonate: surround
Depth
31.5 mm
Standards
MS IEC 60669-1
IEC 60669-1
GB 16915.1
SS 227-1
BS EN 60669-1
Connections -Terminals
Brass rod terminals
Height
87 mm
Relative humidity
0…95 %
Number of gangs
2 gangs
Colour tint
Silver satin
Device mounting
Flush
Surface
Rated Current
20 A at 250 V AC 50/60 Hz
Environmental characteristic
No UV resistant
Load type
Inductive
Product or component type
Switch
This spec is not available in the specification table.
Range
ZENcelo
This spec is not available in the specification table.
Ambient air temperature for operation
-5…35 °C
This spec is not available in the specification table.
Embedding depth
23 mm
This spec is not available in the specification table.
Product Description
RM 3,671.47
Quantity:
EA
MOQ of 8 EA
Bundle of 1 EA
This item is sold by0
Schneider Electric
