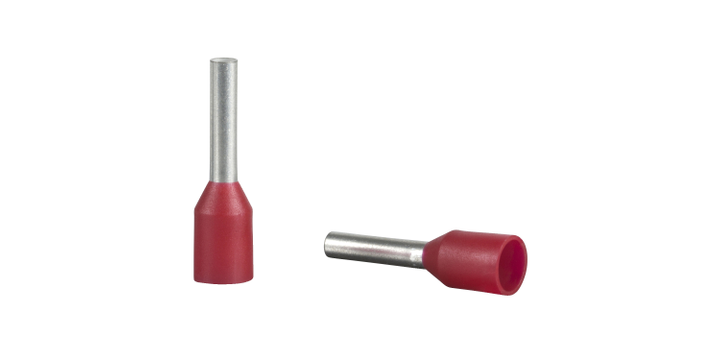

Schneider Electric DZ5CE010 Cable Ends, Linergy Tr Cable Ends, Single Conductor, Red, 1mm², Medium Size, 10 Sets of 100
Schneider Electric DZ5CE010 Cable Ends, Linergy Tr Cable Ends, Single Conductor, Red, 1mm², Medium Size, 10 Sets of 100
Brand: | SCHNEIDER ELECTRIC |
Model: | DZ5CE010 |
Product Description
Schneider Electric DZ5CE010 Cable Ends, Linergy Tr Cable Ends, Single Conductor, Red, 1mm², Medium Size, 10 Sets of 100
Linergy cable end insulated without marker tag holder. It applied to single conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
- Range of Product: Linergy
- Product or Component Type: Cable end
- Cable End Size: Medium
- Standards: NF C 63-023
- Type of Packing: String of bags
- Quantity per Set: 10 sets of 100
- Cable Cross Section: 1 mm²
- Cable End Type: Single conductor
- Additional Information: Without marker tag holder
- Colour: Red
- Bezel Material: Halogen-free plastic
- Tube Material: Copper conforming to ISO 1337
- Number of Cables: 1
- AWG Gauge: AWG 18
- Bezel Size: Ø 3.5 mm
- Tube Diameter: 1.7 mm
- Length: 14 mm
- Tube Length: 8 mm
- Net Weight: 0.1 kg
- Product Certifications: UL
- Ambient Air Temperature for Operation: -20…105 °C
RM 1.09
Quantity:
EA
