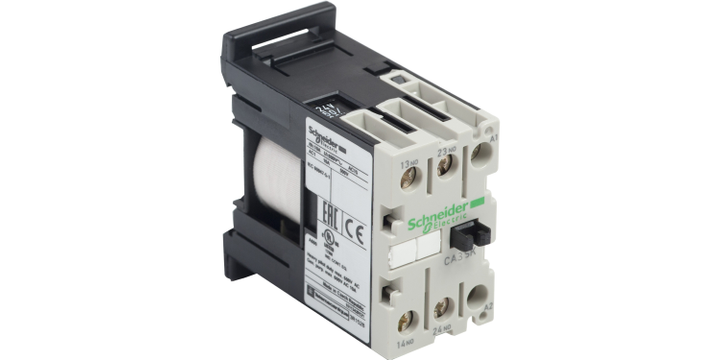

Schneider Electric CA3SK20BD Control Relay, Tesys Sk, 2NO, <= 690V, 24V Dc Standard Coil
Schneider Electric CA3SK20BD Control Relay, Tesys Sk, 2NO, <= 690V, 24V Dc Standard Coil
Brand: | SCHNEIDER ELECTRIC |
Model: | CA3SK20BD |
Specifications
Please select at least one specification below.
Utilisation Category
DC-13
AC-15
Standards
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
[Ui] Rated Insulation Voltage
690 V conforming to IEC 60947
690 V conforming to VDE 0110 group C
690 V conforming to BS 5424
690 V conforming to UL 508
690 V conforming to CSA C22.2 No 14
Mounting Support
Rail
Plate
Ip Degree Of Protection
IP2X
Ambient Air Temperature For Operation
-20…50 °C
Mechanical Durability
10 Mcycles
Ambient Air Temperature For Storage
-50…70 °C
[Ith] Conventional Free Air Thermal Current
10 A (at 55 °C)
Product Certifications
CB Scheme
cULus
EAC
CE
UKCA
Connections - Terminals
Screw clamp terminals 1 cable(s) 1.5…6 mm²solid
Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
Screw clamp terminals 1 cable(s) 0.5…6 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 0.35…6 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 0.35…1.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 0.35…2.5 mm²flexible without cable end
This spec is not available in the specification table.
Tightening Torque
0.8 N.m - on screw clamp terminals pozidriv No 1 screw head
This spec is not available in the specification table.
Range
TeSys
This spec is not available in the specification table.
Product Name
TeSys CASK
This spec is not available in the specification table.
Operating Altitude
2000 m without derating
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
<= 690 V <= 400 Hz
This spec is not available in the specification table.
Contactor Application
Control circuit
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
24 V DC
This spec is not available in the specification table.
Pole Contact Composition
2 NO
This spec is not available in the specification table.
Associated Fuse Rating
10 A gL conforming to VDE 0660
10 A gL conforming to IEC 60947
This spec is not available in the specification table.
Control Circuit Type
DC standard
This spec is not available in the specification table.
Control Circuit Voltage Limits
Operational: 0.85...1.1 Uc (at <50 °C)
Drop-out: 0.1...0.75 Uc (at <50 °C)
This spec is not available in the specification table.
Heat Dissipation
2.2 W
This spec is not available in the specification table.
Operating Time
4...6 ms coil de-energisation and NO opening
8...12 ms coil energisation and NO closing
This spec is not available in the specification table.
Maximum Operating Rate
1200 cyc/h
This spec is not available in the specification table.
Protective Treatment
TC conforming to IEC 60068
This spec is not available in the specification table.
Inrush Power In W
2.2 W (at 20 °C)
This spec is not available in the specification table.
Hold-In Power Consumption In W
2.2 W at 20 °C
This spec is not available in the specification table.
Product Description
RM 311.07
