Schneider Electric CA2SK11M7 CA2SK Control Relay 1NO + 1NC, 10 a Contact Rating, Tesys K

View Brand

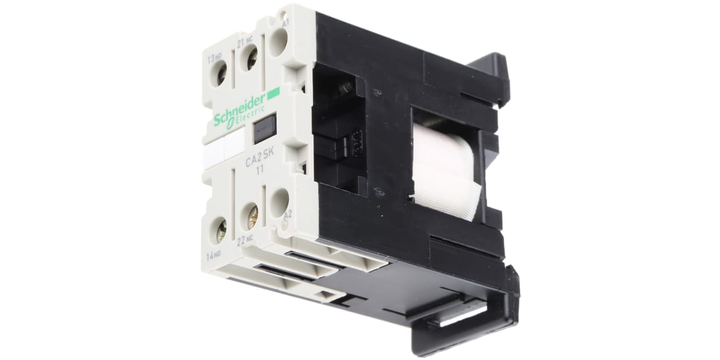

Schneider Electric CA2SK11M7 CA2SK Control Relay 1NO + 1NC, 10 a Contact Rating, Tesys K

Brand:	SCHNEIDER ELECTRIC
Model:	CA2SK11M7

Specifications

View other Overload Relays dimensions or variations

Ambient Air Temperature For Operation

-20 → +50 °C

Range

TeSys K

Connections - Terminals

Connector

Width

27 mm

Series

CA2SK

Length

56 mm

Depth

55.5 mm

Contact Current Rating

10 A

Contact Voltage Rating

690 V ac

Normal State Configuration

NO/NC

Better World Product

Yes

Better World Verification

Green Premium

Product Description

RM 219.34

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Overload Relays

76 Items

Standards

NF C 63-650 IEC 60947 VDE 0660 BS 4941, IEC 60947 NF C 63-650 VDE 0660 BS 4941, IEC 60947 BS 4941 VDE 0660 NF C 63-650, VDE 0660 NF C 63-650 BS 4941 IEC 60947, NF C 63-650 IEC 60947 BS 4941 VDE 0660

[Ui] Rated Insulation Voltage

Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL, Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1, Power circuit: 1000 V AC conforming to IEC 60947-4, Power circuit: 1000 V conforming to IEC 60947-4-1, Power circuit: 690 V conforming to BS 4941 Power circuit: 690 V conforming to IEC 60947 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 600 V conforming to CSA C22.2 No 14

Ambient Air Temperature For Operation

-20 → +55 °C, -25 → +60 °C, -25 → +50 °C, -25 → 60 °C, -20 → +60 °C

Ambient Air Temperature For Storage

-30…80 °C, -55…80 °C, -40…85 °C, -60…70 °C, -40…70 °C

[Ith] Conventional Free Air Thermal Current

3 A for control circuit, 3 A for signalling circuit, 5 A for control circuit, 5 A for signalling circuit, 6 A for signalling circuit

Thermal Protection Adjustment Range

8…11.5 A, 10…14 A, 0.16…0.23 A, 0.8…1.2 A, 3.7…5.5 A

[Us] Rated Supply Voltage

100 → 120 V ac, 200 → 240 V ac, 17 → 32 V dc, 690 V, 24 V ac/dc
