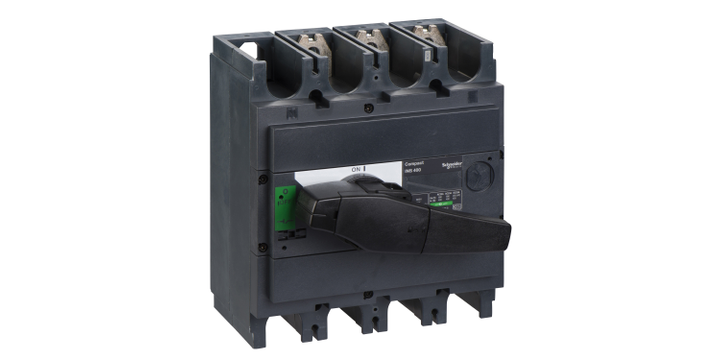

Schneider Electric 31110 Switch Disconnector, Compact INS400, 400A, Standard Version With Black Rotary Handle, 3 Poles
Schneider Electric 31110 Switch Disconnector, Compact INS400, 400A, Standard Version With Black Rotary Handle, 3 Poles
Brand: | SCHNEIDER ELECTRIC |
Model: | 31110 |
Specifications
Please select at least one specification below.
Ip Degree Of Protection
IP40 conforming to IEC 60529
Handle Colour
Black
Product Or Component Type
Switch disconnector
This spec is not available in the specification table.
Range
ComPact
This spec is not available in the specification table.
Mounting Mode
Fixed
This spec is not available in the specification table.
Standards
IEC 60947-1
IEC 60947-3
This spec is not available in the specification table.
Control Type
Direct front rotary handle
This spec is not available in the specification table.
Product Name
ComPacT INS
This spec is not available in the specification table.
Poles Description
3P
This spec is not available in the specification table.
Network Type
AC
DC
This spec is not available in the specification table.
Connection Pitch
45 mm
This spec is not available in the specification table.
Network Frequency
50/60 Hz
This spec is not available in the specification table.
Suitability For Isolation
Yes
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
750 V AC 50/60 Hz
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
8 kV
8 kV conforming to IEC 60947-3
This spec is not available in the specification table.
Contact Position Indicator
Yes
This spec is not available in the specification table.
Mounting Support
Plate
Rail
This spec is not available in the specification table.
Pollution Degree
3
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Mechanical Durability
10000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-50…85 °C
This spec is not available in the specification table.
Electrical Durability
AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-22A: 1500 cycles 690 V AC 50/60 Hz
AC-23A: 1500 cycles 440 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 690 V AC 50/60 Hz
DC-23A: 1000 cycles 125 V DC 2 poles in series
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
125 V DC
690 V AC 50/60 Hz
This spec is not available in the specification table.
[Ie] Rated Operational Current
AC-22A: 400 A AC 50/60 Hz 220/240 V
AC-22A: 400 A AC 50/60 Hz 380/415 V
AC-22A: 400 A AC 50/60 Hz 440/480 V
AC-22A: 400 A AC 50/60 Hz 480 V NEMA
AC-22A: 400 A AC 50/60 Hz 500/525 V
AC-22A: 400 A AC 50/60 Hz 660/690 V
AC-23A: 400 A AC 50/60 Hz 220/240 V
AC-23A: 400 A AC 50/60 Hz 380/415 V
AC-23A: 400 A AC 50/60 Hz 440/480 V
AC-23A: 400 A AC 50/60 Hz 480 V NEMA
AC-23A: 400 A AC 50/60 Hz 500/525 V
AC-23A: 400 A AC 50/60 Hz 660/690 V
DC-22A: 400 A DC 125 V 2 poles in series
DC-23A: 400 A DC 125 V 2 poles in series
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
400 A at 60 °C
This spec is not available in the specification table.
[Icw] Rated Short-Time Withstand Current
11.5 kA during 3 s conforming to IEC 60947-3
20 kA during 1 s conforming to IEC 60947-3
4 kA during 30 s conforming to IEC 60947-3
4.9 kA during 20 s conforming to IEC 60947-3
This spec is not available in the specification table.
Product Certifications
KEMA-KEUR
CCC
This spec is not available in the specification table.
Rated Duty
Uninterrupted
This spec is not available in the specification table.
Ik Degree Of Protection
IK07 conforming to EN 50102
This spec is not available in the specification table.
Upside Connection
Front
This spec is not available in the specification table.
Downside Connection
Front
This spec is not available in the specification table.
[Icm] Rated Short-Circuit Making Capacity
330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
50 kA switch-disconnector alone 690 V AC at 50/60 Hz
This spec is not available in the specification table.
Maximum Power
AC-23: 110 kW at 220/240 V AC 50/60 Hz
AC-23: 110 kW at 230 V AC 50/60 Hz (NEMA)
AC-23: 200 kW at 380/415 V AC 50/60 Hz
AC-23: 220 kW at 440 V AC 50/60 Hz
AC-23: 220 kW at 480 V AC 50/60 Hz (NEMA)
AC-23: 250 kW at 500/525 V AC 50/60 Hz
AC-23: 400 kW at 660/690 V AC 50/60 Hz
This spec is not available in the specification table.
Visible Break
No
This spec is not available in the specification table.
Product Description
RM 2,135.97
