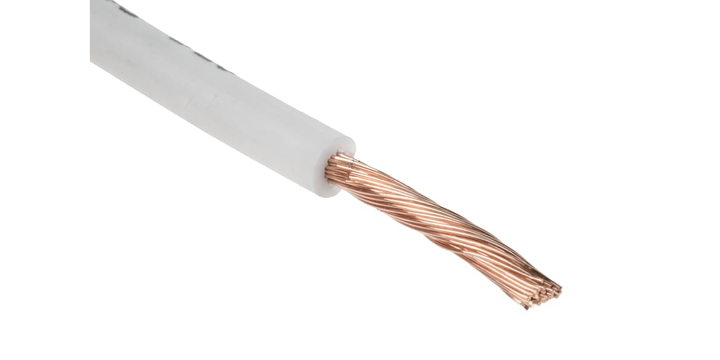

Rs Pro 7637640 White 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Zero Halogen Insulation (1 Reel of 100 Metres)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

MYR - RM

Rs Pro 7637640 White 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Zero Halogen Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 7637640 White 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Zero Halogen Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	7637640

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

750 V

Sheath Colour

White

Insulation Material

Zero Halogen

American Wire Gauge

13 AWG

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+90°C

Outer Diameter

3.25 mm

Number of Strands

Size of Strands

0.25 mm

Conductor Material

Copper

Core Strands

50/0.25 mm

Wire Style

2491B

Insulation Wall Thickness

0.8 mm

Product Description

RM 634.69
