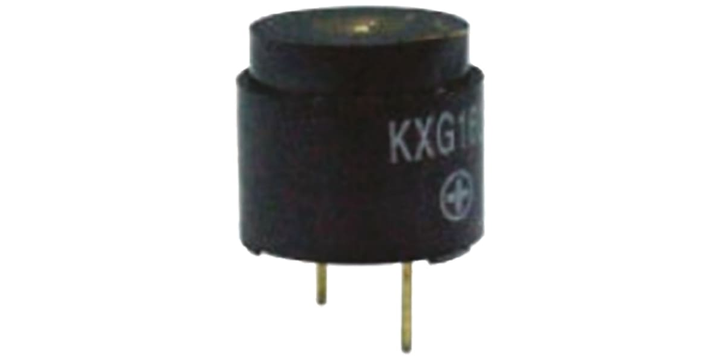

Rs Pro 7542037P 92dB Pcb Mount Internal Magnetic Buzzer Component, 16 (dia.) X 14mm, 4V Min, 7V Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
PCB Mount
Height
14 mm
Dimensions
16 (Dia.) x 14 mm
Diameter
16 mm
Drive Type
Internal
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
4V
Maximum Supply Voltage
7V
Sound Level
92 dB
Maximum Frequency
2.5 kHz
Supply Current
50 mA
Minimum Frequency
1900 Hz
Product Description
RM 713.54
Quantity:
EA
MOQ of 50 EA
Bundle of 5 EA
This item is sold by
SG-4570630354
