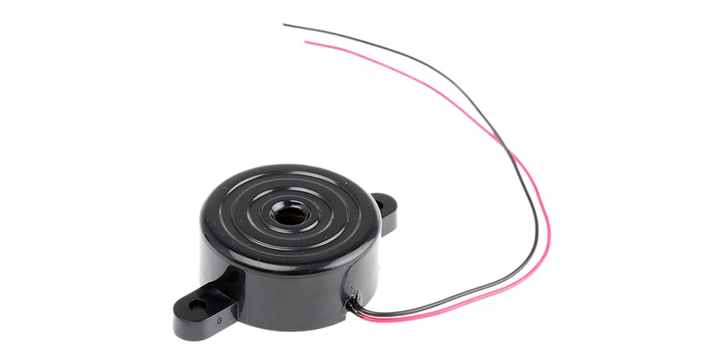

Rs Pro 7542009P 96dB Panel Mount Continuous Internal Piezo Buzzer, 33.7 (dia.) X 14.5mm, 3V Dc Min, 18V Dc Max
Rs Pro 7542009P 96dB Panel Mount Continuous Internal Piezo Buzzer, 33.7 (dia.) X 14.5mm, 3V Dc Min, 18V Dc Max
Brand:
RS Pro
Model:
7542009P
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Panel Mount
Height
14.5 mm
Dimensions
33.7 (Dia.) x 14.5 mm
Diameter
33.7 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
18V dc
Sound Level
96 dB
Tone Type
Continuous
Maximum Frequency
4 kHz
Supply Current
12 mA
Minimum Frequency
3000 Hz
Product Description
