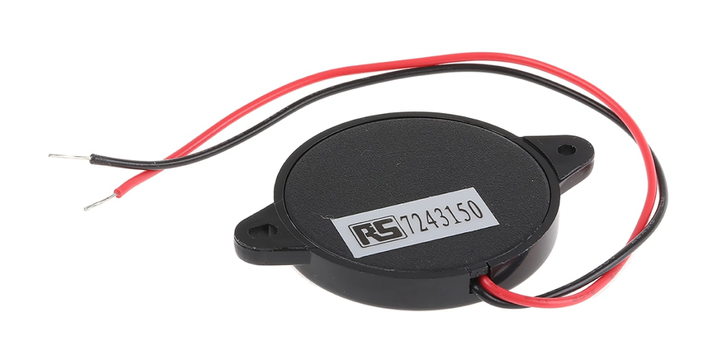

Rs Pro 7243150 88dB Panel Mount Square Wave External Piezo Buzzer, 41 X 30 X 5.5mm, 1V Ac Min, 30V Ac Max
Rs Pro 7243150 88dB Panel Mount Square Wave External Piezo Buzzer, 41 X 30 X 5.5mm, 1V Ac Min, 30V Ac Max
Brand:
RS Pro
Model:
7243150
Technical Data Sheets
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Length
41 mm
Mounting Type
Panel Mount
Depth
30 mm
Height
5.5 mm
Dimensions
41 x 30 x 5.5 mm
Diameter
30 mm
Drive Type
External
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
1V ac
Maximum Supply Voltage
30V ac
Sound Level
88 dB
Tone Type
Square Wave
Maximum Frequency
4 kHz
Supply Current
3 mA
Minimum Frequency
3000 Hz
Capacitance
20 nF
