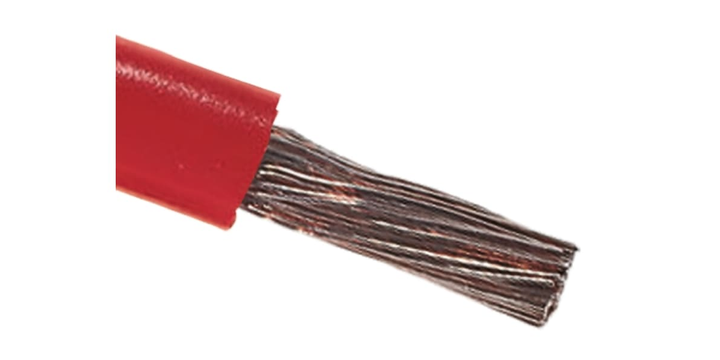

Rs Pro 6285314 Red 10 Mm² Hook up Wire, 8 Awg, 72/0.4 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Rs Pro 6285314 Red 10 Mm² Hook up Wire, 8 Awg, 72/0.4 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Brand:
RS Pro
Model:
6285314
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
100 m
Current Rating
75 A
Voltage Rating
600 V
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1028
Sheath Colour
Red
Insulation Material
PVC
American Wire Gauge
8 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+105°C
Outer Diameter
6.8 mm
Number of Strands
72
Size of Strands
0.4 mm
Conductor Material
Annealed Copper
Core Strands
72/0.4 mm
Cable Shape
Single Core
Insulation Wall Thickness
1.2 mm
