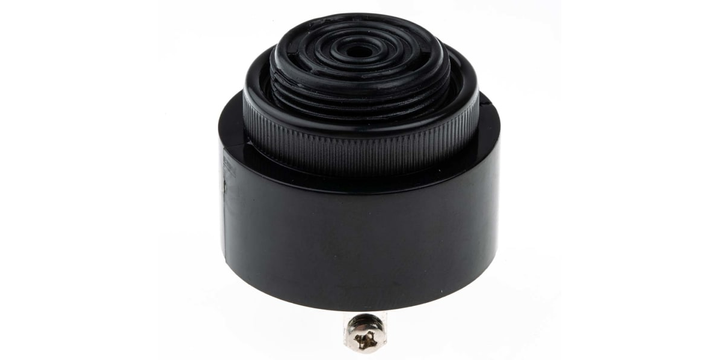

Rs Pro 6221556 92dB Panel Mount Continuous, Fast Pulse Internal Buzzer, 42.5 (dia.) X 42.5mm, 6V Dc Min, 28V Dc Max
Rs Pro 6221556 92dB Panel Mount Continuous, Fast Pulse Internal Buzzer, 42.5 (dia.) X 42.5mm, 6V Dc Min, 28V Dc Max
Brand:
RS Pro
Model:
6221556
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Panel Mount
Height
33 mm
Dimensions
42.5 (Dia.) x 42.5 mm
Diameter
42.5 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
6V dc
Maximum Supply Voltage
28V dc
Sound Level
92 dB
Tone Type
Continuous, Fast Pulse
Maximum Frequency
3.3 kHz
Supply Current
29 mA
Minimum Frequency
2300 Hz
