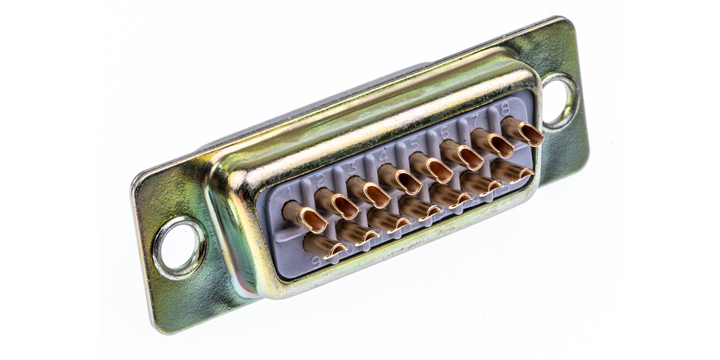

Rs Pro 472865 15 Way Panel Mount D-sub Connector Socket
Rs Pro 472865 15 Way Panel Mount D-sub Connector Socket
Brand:
RS Pro
Model:
472865
Technical Data Sheets
Specifications
infotip-icon
View other D Sub Connectors dimensions or variations
Please select at least one specification below.
Length
39.14 mm
Current Rating
5.0 A
Mounting Type
Panel Mount
Depth
12.55 mm
Voltage Rating
750 V ac/dc
Dimensions
39.14 x 14.85 x 12.55 mm
Gender
Female
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold over Nickel
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+125°C
Number of Contacts
15
D Connector Type
Standard D-Sub
D-Sub Shell Size
A
Housing Material
Steel
Contact Material
Copper Alloy
Product Description
