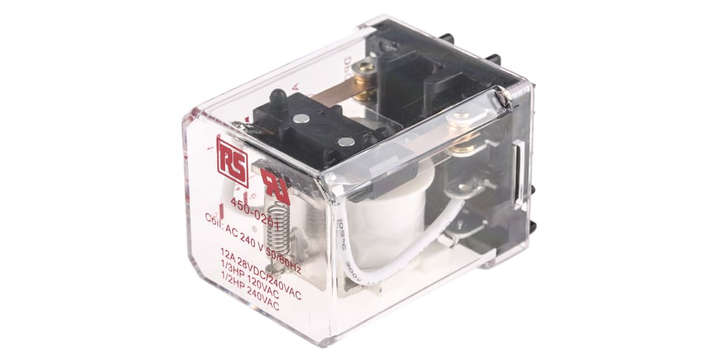

Rs Pro 4500201 Pcb Mount Power Relay, 240V Ac Coil, 12A Switching Current, Dpdt
View Brand
Rs Pro 4500201 Pcb Mount Power Relay, 240V Ac Coil, 12A Switching Current, Dpdt
Brand:
RS Pro
Model:
4500201
Technical Data Sheets
Certification
Certification
RS Pro Datasheet
Specifications
View other
Power Relay
dimensions or variations
Please select at least one specification below.
Find Selected Specs
Length
38 mm
Application
Power
Mounting Type
PCB Mount
Depth
35 mm
Height
47.5 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
240 V ac
Standards Met
CUR E125370, RoHS Compliant, UL E125370
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+50°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
240 V
Maximum Switching Voltage DC
28 V dc
Coil Power
2 W
Coil Resistance
9.11 Kilo Ohm
Isolation Coil To Contact
1.5 kV ac
Maximum Switching Power DC
364 W
Switching Current
12 A
Maximum Switching Power AC
2.88 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
10 Million (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
RM 49.58
Quantity:
/ EA
Add to Cart
Add To Shopping List
