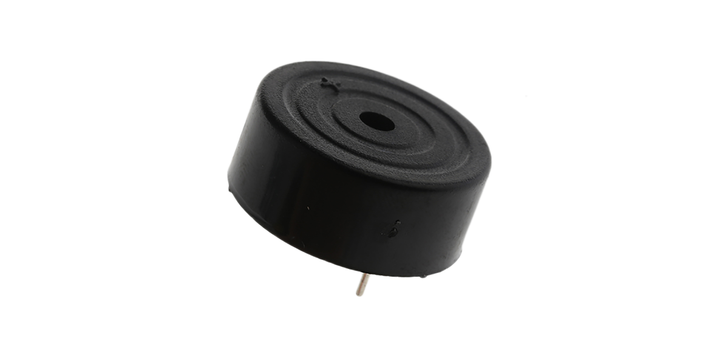

Rs Pro 237956 75dB Through Hole Continuous Internal Piezo Buzzer, 23.3 (dia.) X 6.5mm, 3V Dc Min, 20V Dc Max
Rs Pro 237956 75dB Through Hole Continuous Internal Piezo Buzzer, 23.3 (dia.) X 6.5mm, 3V Dc Min, 20V Dc Max
Brand:
RS Pro
Model:
237956
Technical Data Sheets
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Through Hole
Height
6.5 mm
Dimensions
23.3 (Dia.) x 6.5 mm
Diameter
23.3 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
20V dc
Sound Level
75 dB
Tone Type
Continuous
Maximum Frequency
3.7 kHz
Supply Current
13 mA
Minimum Frequency
2700 Hz
Product Description
