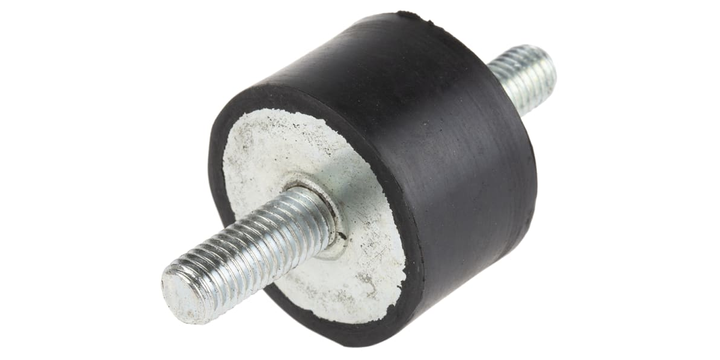

Rs Pro 1623240 M10 Anti Vibration Mount, Male to Male Bobbin With 164kg Compression Load (1 Bag of 8)
Rs Pro 1623240 M10 Anti Vibration Mount, Male to Male Bobbin With 164kg Compression Load (1 Bag of 8)
Brand:
RS Pro
Model:
1623240
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M10
Diameter
40 mm
Overall Height
25 mm
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
164 kg
Metalwork
Zinc Plated Steel
Shore Hardness
70 Shore A
Shearing Load
54 kg
Compression Deflection
2.5 mm
