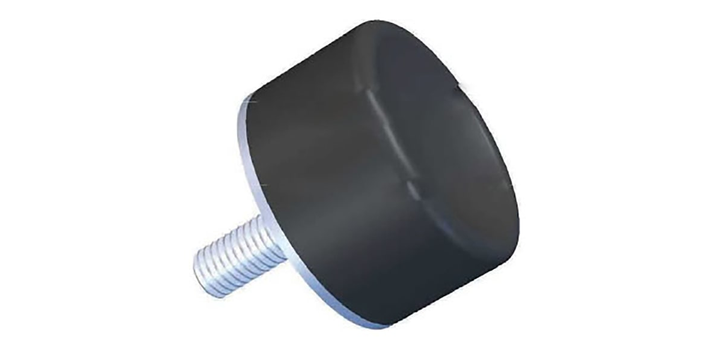

Rs Pro 1264926 M4 Anti Vibration Mount, Male Buffer Foot With 5kg Compression Load (1 Bag of 8)
Rs Pro 1264926 M4 Anti Vibration Mount, Male Buffer Foot With 5kg Compression Load (1 Bag of 8)
Brand:
RS Pro
Model:
1264926
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M4
Diameter
10 mm
Overall Height
10 mm
Series
AV Type D
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male Buffer Foot
Compression Load
5 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Compression Deflection
1 mm
