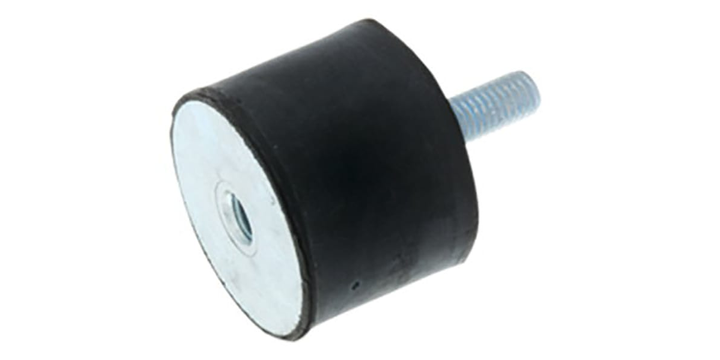

Rs Pro 1264291 M4 Anti Vibration Mount, Male to Female Bobbin With 25kg Compression Load (1 Bag of 8)
Rs Pro 1264291 M4 Anti Vibration Mount, Male to Female Bobbin With 25kg Compression Load (1 Bag of 8)
Brand:
RS Pro
Model:
1264291
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M4
Diameter
16 mm
Overall Height
15 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
25 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
7 kg
Compression Deflection
1.5 mm
Product Description
