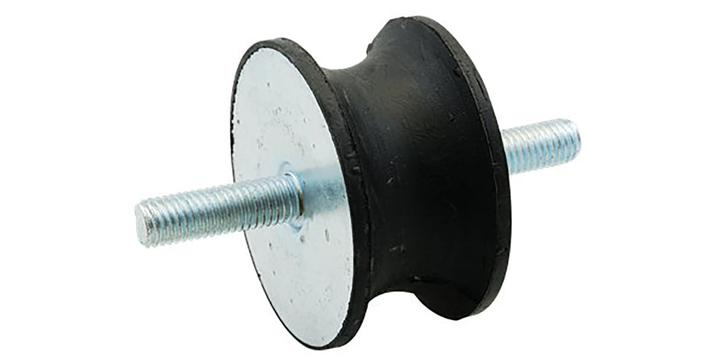

Rs Pro 1264274 M6 Anti Vibration Mount, Male to Male Bobbin With 9 Compression Load (1 Bag of 8)
Rs Pro 1264274 M6 Anti Vibration Mount, Male to Male Bobbin With 9 Compression Load (1 Bag of 8)
Brand:
RS Pro
Model:
1264274
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M6
Diameter
20 mm
Overall Height
18 mm
Series
AD
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
9 kg
Metalwork
Zinc Plated Steel
Shore Hardness
50 Shore A
Shearing Load
2.5 kg
Compression Deflection
1.8 mm
