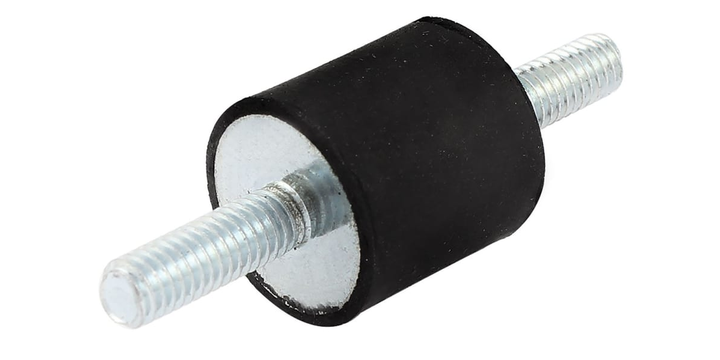

Rs Pro 1263983 M12 Anti Vibration Mount, Male to Male Bobbin With 143kg Compression Load (1 Bag of 2)
Rs Pro 1263983 M12 Anti Vibration Mount, Male to Male Bobbin With 143kg Compression Load (1 Bag of 2)
Brand:
RS Pro
Model:
1263983
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M12
Diameter
50 mm
Overall Height
42 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
143 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
53 kg
Compression Deflection
4.2 mm
