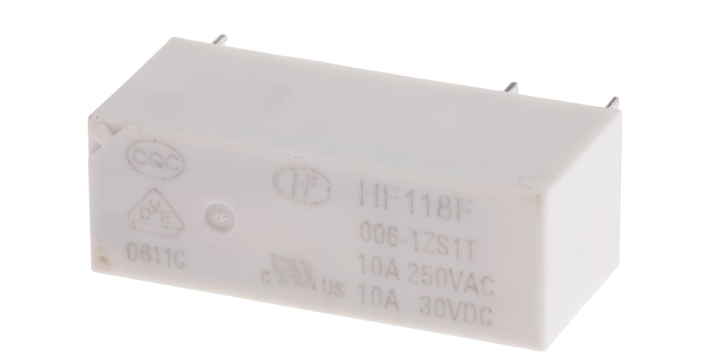

Rs Pro 0476684P Pcb Mount Power Relay, 6V Dc Coil, 10A Switching Current, Spdt
View Brand
Rs Pro 0476684P Pcb Mount Power Relay, 6V Dc Coil, 10A Switching Current, Spdt
Brand:
RS Pro
Model:
0476684P
Technical Data Sheets
RS Pro Datasheet
Specifications
View other
Power Relay
dimensions or variations
Please select at least one specification below.
Find Selected Specs
Length
28.5 mm
Application
Power
Mounting Type
PCB Mount
Depth
10.1 mm
Height
12.5 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
6 V dc
Standards Met
CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.: 40010480
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
440 V ac
Maximum Switching Voltage DC
125 V dc
Coil Power
290 mW
Coil Resistance
164 Ohm
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
300 W
Switching Current
10 A
Maximum Switching Power AC
2.5 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
RM 696.25
Quantity:
/ EA
MOQ of 25 EA
Bundle of 1 EA
Add to Cart
Add To Shopping List
