Osg HP2551732 Jobber Drill 4.40mm Carbide

View Brand

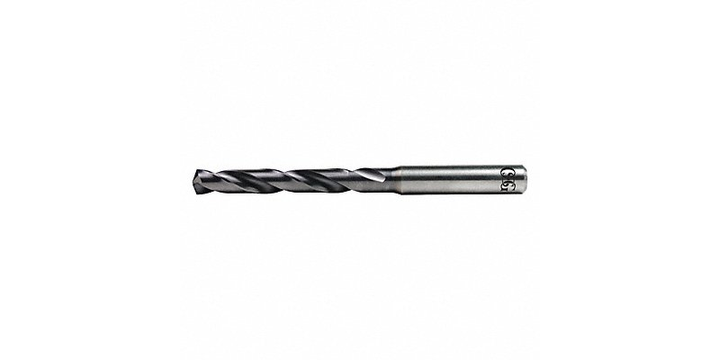

Osg HP2551732 Jobber Drill 4.40mm Carbide

Brand:	OSG
Model:	HP2551732

Specifications

View other Jobber Drills dimensions or variations

Drill Bit Point Type

R Thinning Point

Drill Bit Size

4.40 mm

Overall Length

74.00 mm

Standards

Not Rated

Material - Machining

Carbide

Shank Dia.

6 mm

Drill Bit Point Angle

140°

Measurement System

Metric

Flute Type

Spiral

Flute Length

36.00 mm

Cutting Direction

Right Hand

Finish - Machining

TiAlN

Coolant Fed

Coolant Through

Shank Type - Machining

Straight

Decimal Equivalent

0.1732

Primary Material Application

Tool and Die Steel, Steel, Cast Iron, Hardened Steel

Series

HP255

Maximum Drilling Depth

36 mm

Product Description

RM 768.04

Units	Discount	Unit Price
1	-	RM 768.04

Quantity:

Lead time of 1 working days required.

Item will be ready to dispatch within the lead time specified.
