Osg 8667278 Jobber Drill 7/64 Carbide

View Brand

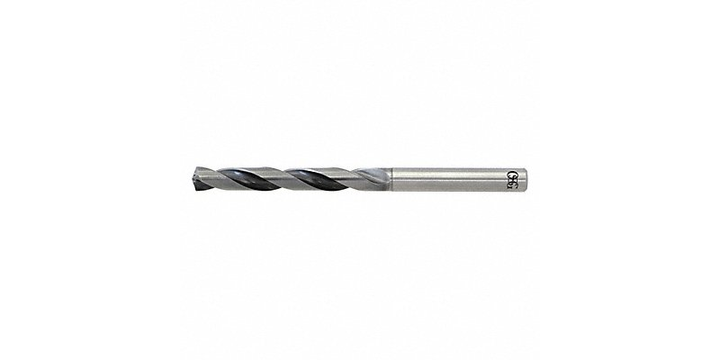

Osg 8667278 Jobber Drill 7/64 Carbide

Brand:	OSG
Model:	8667278

Specifications

View other Jobber Drills dimensions or variations

Drill Bit Point Type

R Thinning Point

Drill Bit Size

7/64"

Overall Length

78.00 mm

Standards

Not Rated

Material - Machining

Carbide

Shank Dia.

3 mm

Drill Bit Point Angle

140°

Measurement System

Fractional Inch

Flute Type

Spiral

Flute Length

26.00 mm

Cutting Direction

Right Hand

Finish - Machining

WXL

Coolant Fed

Coolant Through

Shank Type - Machining

Straight

Decimal Equivalent

0.1094

Primary Material Application

Steel, Cast Iron, Titanium, Stainless Steel

Series

5210

Maximum Drilling Depth

26 mm

Product Description

RM 1,087.67

Units	Discount	Unit Price
1	-	RM 1,087.67

Quantity:

Lead time of 1 working days required.

Item will be ready to dispatch within the lead time specified.
