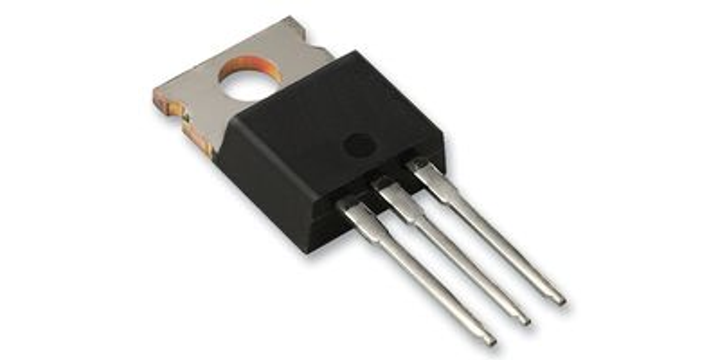

Multicomp Pro TIP47 Transistor, Npn, TO-220
Multicomp Pro TIP47 Transistor, Npn, TO-220
Brand:
MULTICOMP PRO
Model:
TIP47
Specifications
infotip-icon
View other Single Bipolar Junction Transistors dimensions or variations
Please select at least one specification below.
Operating Temperature Min
-65°C
Operating Temperature Max
150°C
Transistor Case Style
TO-220
Power Dissipation
40 W
DC Current Gain hFE
30 hFE
Transition Frequency
10 MHz
DC Collector Current
1A
Collector Emitter Saturation Voltage Vce(on)
1 V
Current Ic hFE
1 A
Voltage Vcbo
350 V
Gain Bandwidth ft Min
10 MHz
Gain Bandwidth ft Typ
10 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
NPN
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
250 V
This spec is not available in the specification table.
