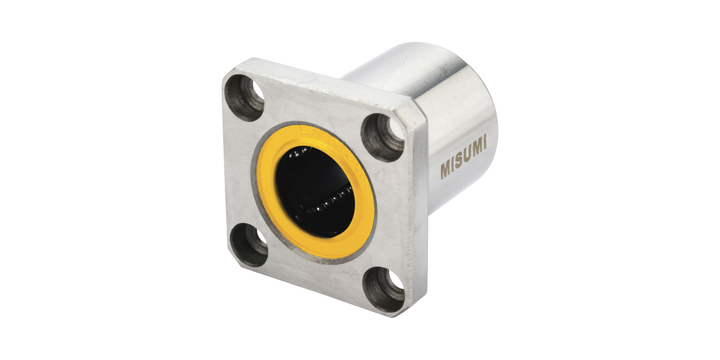

Misumi E-LBKM16UU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Misumi E-LBKM16UU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Brand:
MISUMI
Model:
E-LBKM16UU
Specifications
infotip-icon
View other Linear Bearing dimensions or variations
Please select at least one specification below.
Type
Flange
Accuracy
Standard Grade
Ball Material
SUJ2 Equivalent
Outer Diameter
28
mm
Overall Length
37
mm
Inscribed Circle Diameter
16
mm
Style of Mounting Hole
Standard Counterbored Hole
Ball Recirculating Type
Single
Eccentricity
0.024 µm
Flange Shape
Square Flange
Basic Load Rating: Static Load
1180 N
Motion
Linear
Basic Load Rating: Dynamic Load
775 N
