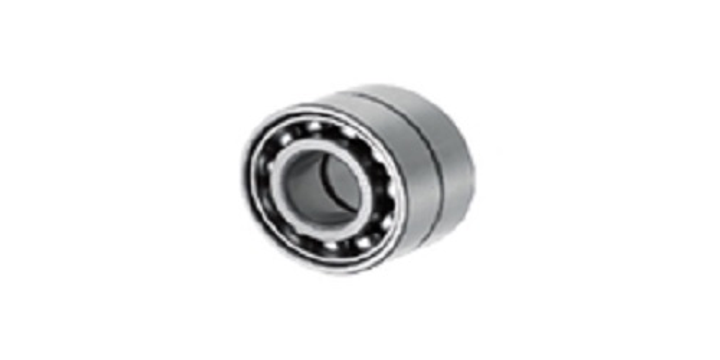

Misumi E-B7002-DB Angular Contact Ball Bearings Double Row Db Combination
Misumi E-B7002-DB Angular Contact Ball Bearings Double Row Db Combination
Brand:
MISUMI
Model:
E-B7002-DB
Specifications
infotip-icon
View other Ball Bearings dimensions or variations
Please select at least one specification below.
Bearing Type
Angular Contact Ball (Multi-Row)
Bore Diameter
15 mm
Outside Diameter
32 mm
Width
9 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
70 g
This spec is not available in the specification table.
Environment Specification
Standard
This spec is not available in the specification table.
Load Direction
Radial / Thrust Load, Axial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
9950 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
20000 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 5
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Double Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2 Equiv.
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
6850 N
This spec is not available in the specification table.
