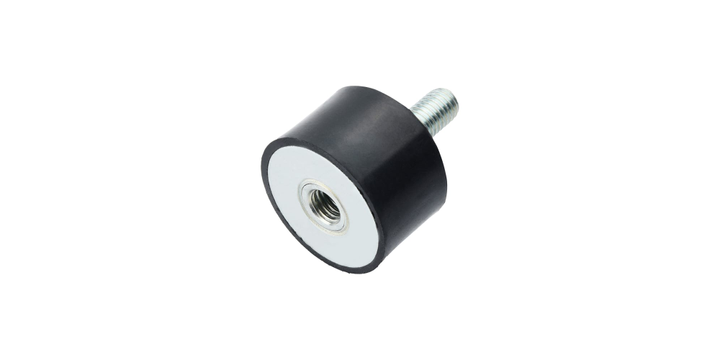

Misumi C-VD1615-10 Anti-vibration Rubber Mounts 1 Tapped Hole and 1 Threaded Stud Type
Misumi C-VD1615-10 Anti-vibration Rubber Mounts 1 Tapped Hole and 1 Threaded Stud Type
Brand: | MISUMI |
Model: | C-VD1615-10 |
Specifications
Please select at least one specification below.
Thread Size
M4
Diameter
16 mm
Overall Height
15 mm
Material
Natural Rubber (Outside), Steel (Inside)
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+100°C
Anti Vibration Mount Type
Antivibration Rubber
Shore Hardness
60 Shore
Foot Shape
Round
Connection Type
Tapped and Threaded Studs
This spec is not available in the specification table.
Application
Vibration Damping
This spec is not available in the specification table.
Spring Constan
85 N/mm
This spec is not available in the specification table.
Maximum Operating Load
268 N
This spec is not available in the specification table.
Body Color
Black
This spec is not available in the specification table.
Working Load
43～225 N
This spec is not available in the specification table.
Product Description
RM 3.12
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 3.12 |
Quantity:
EA
Stock:
66 EA in stock
In Seller's Warehouse
