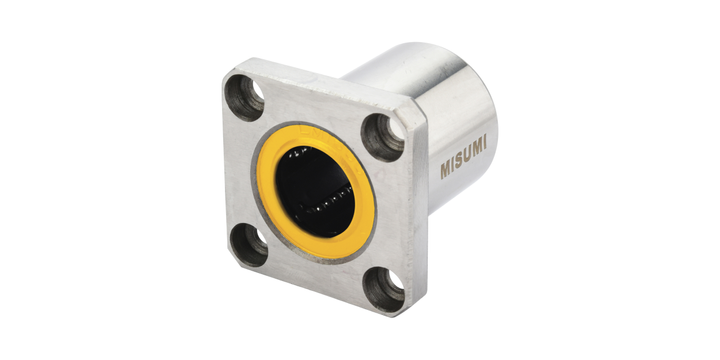

Misumi C-LMK16UU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Misumi C-LMK16UU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Brand:
MISUMI
Model:
C-LMK16UU
Specifications
infotip-icon
View other Linear Bearing dimensions or variations
Please select at least one specification below.
Type
Flange
Accuracy
Standard Grade
Ball Material
SUJ2 Equivalent
Outer Diameter
28
mm
Overall Length
37
mm
Inscribed Circle Diameter
16
mm
Ball Recirculating Type
Single
Eccentricity
24 µm
Flange Shape
Square Flange
Basic Load Rating: Static Load
1180 N
Motion
Linear
Basic Load Rating: Dynamic Load
775 N
