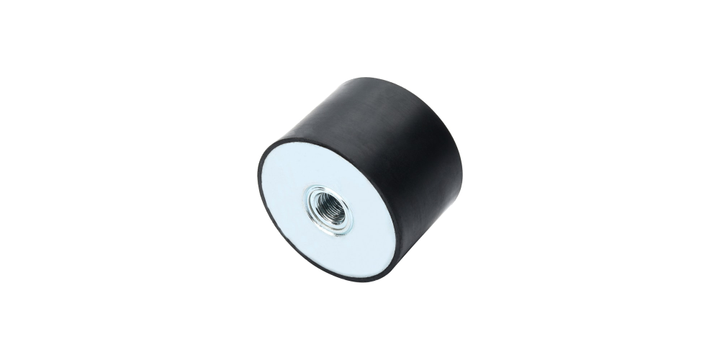

Misumi C-DD2030-6 Anti-vibration Rubber Mounts Both Ends Tapped Type
Misumi C-DD2030-6 Anti-vibration Rubber Mounts Both Ends Tapped Type
| Brand: | MISUMI |
| Model: | C-DD2030-6 |
Specifications
Please select at least one specification below.
Thread Size
M6
Diameter
20 mm
Overall Height
30 mm
Material
Natural Rubber (Outside), Steel (Inside)
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+100°C
Anti Vibration Mount Type
Antivibration Rubber
Shore Hardness
60 Shore
Foot Shape
Round
Connection Type
Both Ends Tapped
This spec is not available in the specification table.
Application
Vibration Damping
This spec is not available in the specification table.
Spring Constan
38 N/mm
This spec is not available in the specification table.
Maximum Operating Load
239 N
This spec is not available in the specification table.
Body Color
Black
This spec is not available in the specification table.
Working Load
19～228 N
This spec is not available in the specification table.
Product Description
RM 3.86
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 3.86 |
Quantity:
EA
Stock:
8 EA in stock
