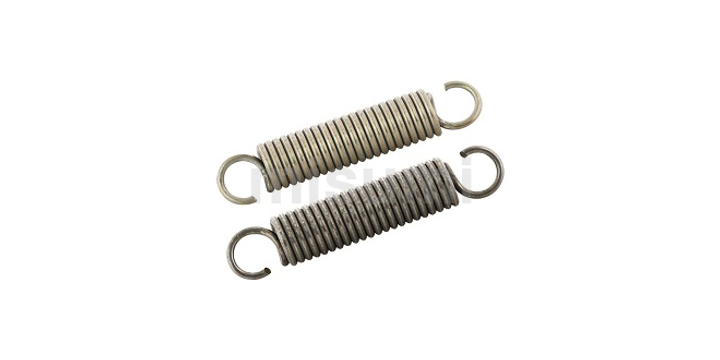

Misumi C-AWF6-30 Tension Springs Medium Light / Medium Load O.D.3-10
Misumi C-AWF6-30 Tension Springs Medium Light / Medium Load O.D.3-10
Brand:
MISUMI
Model:
C-AWF6-30
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
6
mm
Allowable Load (Configurable Range)
15.01~30.00 N
Max. Load
23.54 N
Wire Diameter
0.9
mm
Free Length
30
mm
Length of Spring Used L+F
37.8
mm
Initial Tension
5.88 N
Standard Spring Constant
2.26 N/mm
Max. Deflection
7.8 mm
Hook Opposing Angle
180° (Standard)
