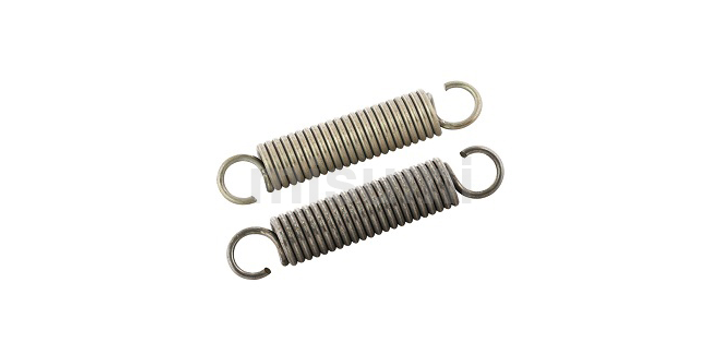

Misumi C-AUY5-45 Tension Springs Ultra Light Load / Light Load O.D.3-8
Misumi C-AUY5-45 Tension Springs Ultra Light Load / Light Load O.D.3-8
Brand:
MISUMI
Model:
C-AUY5-45
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SUS304-WPB
Outer Diameter
5
mm
Allowable Load (Configurable Range)
3.51~8.00 N
Max. Load
4.22 N
Wire Diameter
0.5
mm
Free Length
45
mm
Length of Spring Used L+F
82.7
mm
Initial Tension
0.88 N
Standard Spring Constant
0.09 N/mm
Max. Deflection
37.7 mm
Hook Opposing Angle
180° (Standard)
Product Description
