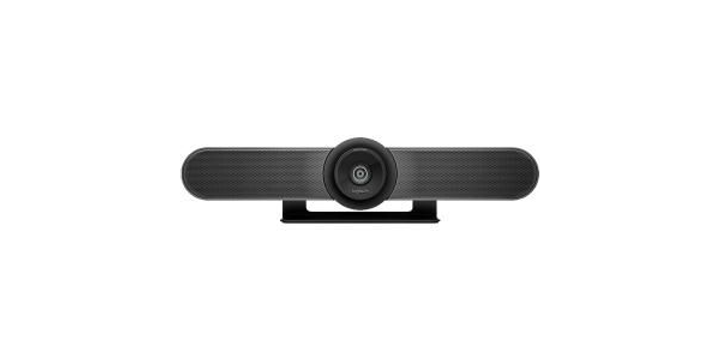

LOGITECH VIDEO CONFERENCING

5X ZOOM

Perfectly frame presenters to minimize background distractions. Zoom in on whiteboards and objects so remote participants can see what you see. Thanks to its advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.

Super-wide 120° field ofiew
Allows everyone in the room to be seen, even those close to the camera or seated at the edges of the room.

Ultra HD 4K image sensor
Supports multiple resolutions, including 4K (Ultra HD)1 1080p (Full HD) and 720p (HD) to best support the quality offered by your application and monitor

3 camera presets
Select up to three preset locations for the camera view and return to any of them with the push of a button on the remote control.

Bluetooth wireless technology
Connect to a Bluetooth device for great-sounding audio calls.

Multiple mounting options
Freedom to mount MeetUp wherever it works best— tabletop, wall, or monitor—for the best possible huddle room experience.

TECHNICAL SPECIFICATIONS

Camera

• Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
• Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
• Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
• 3 camera position presets
• RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher

Video Performance

• 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
• 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
• 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

RIGHTSENSE TECHNOLOGIES

• Advanced technologies and design innovations that make video collaboration easy and automatic.

RightLight

• Low-light compensation
• Video noise reduction
• Low-light saturation optimization

RightSight

• Human figure detection
• Auto-frame participants at meeting start
• Auto-frame participants on-demand
• Auto-reframe when participants enter, leave, or change positions

RightSound

• Machine learning AI trained to distinguish human speech from other sounds
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Auto-level loud and soft voices
• Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
• Anti-vibration enclosure

COMPATIBILITY AND INTEGRATIONS

• Plug-and-play USB connectivity
• Certifications
• Certified for Skype™ for Business and ready for Teams
• Zoom™ Certified
• Tencent Certified
• Certified for Google Hangouts Meet Hardware
• Compatibility
• RingCentral: q
• Microsoft Cortana
• Cisco Jabber
• BlueJeans
• BroadSoft
• Vidyo

Speaker

• Volume adjustable to 95 dB SPL at 1/2 meter peak
• Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
• Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1%
• Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

General

• Bluetooth wireless technology
• RF remote control
• Integrated table/wall mount; optional TV mount available
• Kensington security slot

• PACKAGE CONTENTS
• MeetUp ConferenceCam
• Remote control
• USB 2.0 cable: 5 m
• Power supply
• Wall mount and hardware
• User documentation

SYSTEM REQUIREMENTS

Windows® 7, Windows 8.1, or Windows 10

macOS 10.10 or higher

USB 2.0 prt (USB 3.0 Port and cable required for 4K video)
