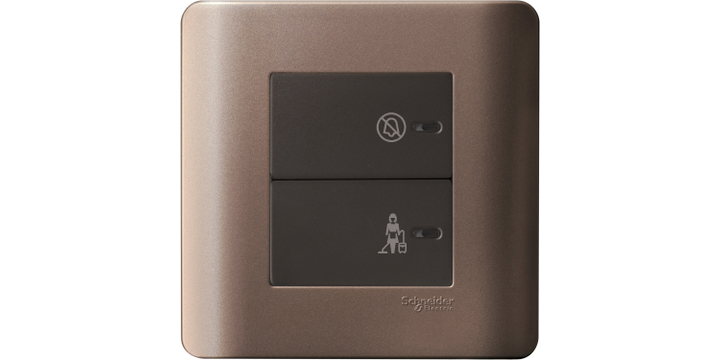

Clipsal E8432DMS_SZ 2 Gang Switch w/Illuminated "donotdisturb&pleasecleanup" Symbols, Silver Bronze
Clipsal E8432DMS_SZ 2 Gang Switch w/Illuminated "donotdisturb&pleasecleanup" Symbols, Silver Bronze
Brand: | CLIPSAL |
Model: | E8432DMS_SZ |
Specifications
Please select at least one specification below.
Width
87 mm
Material
Brass: contact
Polycarbonate: base
Polycarbonate: cover
Polycarbonate: grid plate
Polycarbonate: surround
Local signalling
Please clean up: indicator light, neon (green)
Do not disturb: indicator light, neon (orange)
Depth
27.72 mm
Device application
Bell switch
Standards
IEC 60669-1
BS EN 60669-1
MS IEC 60669-1
GB 16915.1
Connections -Terminals
Pillar terminals
Height
87 mm
Relative humidity
0…95 %
Number of gangs
2 gangs
Colour tint
Silver bronze
Device mounting
Surface
Flush
Rated Current
10 A at 250 V AC 50/60 Hz
Environmental characteristic
No UV resistant
Load type
Resistive
Inductive lamp
Product or component type
Switch
This spec is not available in the specification table.
Range
ZENcelo
This spec is not available in the specification table.
Ambient air temperature for operation
-5…35 °C
This spec is not available in the specification table.
Operating altitude
2000 m
This spec is not available in the specification table.
Product Description
RM 310.94
