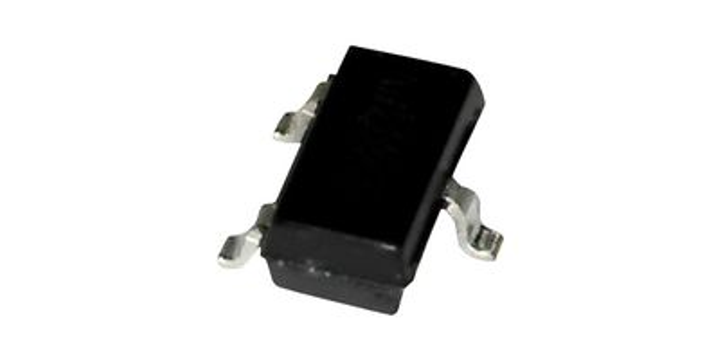

Analog Devices MAX809JEUR+T Mpu Supervisory Circuit, SOT-23-3
Analog Devices MAX809JEUR+T Mpu Supervisory Circuit, SOT-23-3
Brand: | Analog Devices |
Model: | MAX809JEUR+T |
Technical Data Sheets
Specifications
Please select at least one specification below.
Threshold Voltage
4 V
This spec is not available in the specification table.
Supply Voltage Min
1.2 V
This spec is not available in the specification table.
Supply Voltage Max
5.5 V
This spec is not available in the specification table.
Reset Type
Active-Low
This spec is not available in the specification table.
Digital IC Case
SOT-23
This spec is not available in the specification table.
No. of Pins
3
This spec is not available in the specification table.
Delay Time
240 ms
This spec is not available in the specification table.
Operating Temperature Min
-40°C
This spec is not available in the specification table.
Operating Temperature Max
105°C
This spec is not available in the specification table.
MSL
MSL 1 - Unlimited
This spec is not available in the specification table.
Base Number
809
This spec is not available in the specification table.
Output Current Max
20 mA
This spec is not available in the specification table.
Supply Current
24 µA
This spec is not available in the specification table.
Supply Voltage Range
1.2 V to 5.5 V
This spec is not available in the specification table.
Termination Type
Surface Mount Device
This spec is not available in the specification table.
Product Description
RM 29.76
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
