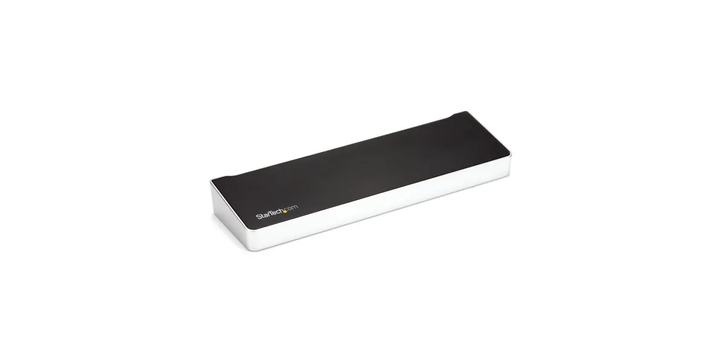

Startech DK30CH2DEPUE 5 X Usb Ports, Usb A, Usb C - Triple Monitor 4K USB-C Docking Station With Displayport, Hdmi

Designed with productivity in mind, this docking station from StarTech.com has five USB 3.0 ports, three ports for 4k video output, and 100W of power output. For users wanting a range of ports and flexibility with connection points, particularly when laptops are being released with limited port options, this is an excellent solution. It’s the perfect companion for your MacBook, Dell XPS, Chromebook, or other USB C enabled computer.

Fantastic Video Output

StarTech’s laptop docking station provide two different output ports for video depending on the display. The HDMI and DisplayPort ports allow users to create a multi-display setup by connecting 3 separate 4k screens. The DisplayPort connections can display 4k @ 60Hz, while the HDMI port will display the same @ 30Hz.
For users sporting a 5k display, you can use both DisplayPort receptacles to connect it @ 60Hz.
This is a superb way to present in the boardroom and it’s a valued addition for home or office workers where multiple HD monitors are incorporated into your workstation. It offers great versatility to users who are constantly having to adapt and improved productivity with the ability to host multiple displays.

Super Power with 100W Power Delivery

Charge and power your computer in no time with 100W of power delivery from this multiport connector. Simultaneously charge and power peripherals such as phones, a mouse and keyboard from the 150W power adapter that’s included.

The Essentials

All USB ports are version 3.0 for faster data transfer. With one USB type-C, four USB type-A ports (one being a fast charge port), make sure you’re always connected to your essential devices at any time for power or data transfer.

The Extras

StarTech.com have thought about what users want from a docking station and have provided a highly adaptable hub for users with different needs. Not only does it feature USB A and type-C ports, it also boasts gigabit ethernet (RJ45) compatibility, headset jack, as well as two 3.5mm jack ports for audio and microphone outputs.

MAC address changer

For better security across your network, StarTech.com have included a free Windows software application that maintains the MAC address of your laptop while using the ethernet port connected in the dock, rather than the MAC address of the dock itself. This software is known as a MAC address changer or cloning software. It means that the network administrators can see the device on their network and can continue to monitor activity.
Note: You can also connect the USB-C docking station to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M (sold separately). Note: Power Delivery to charge your computer is not available through USB-A, and only dual video display is supported.

Features and Benefits

• Connects to host via 1ft USB C cable (included)
• 1x USB-C female port (can be used as a Thunderbolt 3 port)
• 3x USB-A 3.0 female ports
• 1x HDMI female port supporting 4k
• 2x Female DisplayPorts 4k
• 1x RJ-45 female connector
• 1x 3.5mm 4 position headset jack
• 100W power delivery 3.0
• Compatible with: Windows® 7, 8, 8.1, 10 macOS 10.9 - 10.12, 10.14 - 10.15 Chrome OS™ v55+
• Perfect for: Lenovo X1, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook & MacBook Pro 16
• Suitable for Thunderbolt 3 and UCB C enabled device like smartphones, tablets and laptops
• 1x Fast charge USB A 3.0 port
• 2x 3.5mm mini jack 3 position port
• 1x Security lock slot
• AC power adapter
• MAC address changer software

FAQ

What are the applications for this docking station?

Users can connect a variety of peripherals to their notebook, tablet etc. with this docking station at work or at home. Charge multiple gadgets at once, especially with the fast charge port, stay connected to the internet, and connect three separate 4k screens for ultimate working and gaming. Those with a 5k display can connect it to both DisplayPort receptacles. Power hungry computers will also see a massive benefit with 100W’s of power delivery.

What is the purpose of a docking station?

The purpose of this dock is to expand on the different types of ports your current computer has.

Why do I need a docking station for my laptop?

With more and more laptops being released with a limited number and variety of port types, users are utilising docks to expand the ability to connect other peripherals to their computers.

How does a docking station work?

A docking station is often bus powered and runs off the power on your laptop or tablet. There is normally one male connector, typically a USB A or C port, which connects to your computer. Once connected, users are free to connect whatever peripherals they require to the dock as long as there is a port available and compatible.

What’s in the box?

• 1 - Docking Station
• 1 - USB-C Cable
• 1 - Universal Power Adapter (UK. EU)
• 1 - Instruction Manual
• 1 - Anti-Slip Rubber Pads
