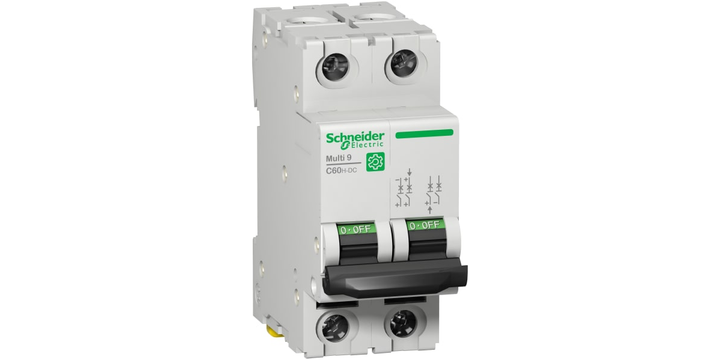

Schneider Electric M9U21204 Multi 9 C60H-DC Mcb, 2P, 4A Curve C, 500V Dc, 15 Ka Breaking Capacity
Schneider Electric M9U21204 Multi 9 C60H-DC Mcb, 2P, 4A Curve C, 500V Dc, 15 Ka Breaking Capacity
Brand: | SCHNEIDER ELECTRIC |
Model: | M9U21204 |
Specifications
Please select at least one specification below.
Range
Multi 9
Poles Description
2P
[In] Rated Current
4 A
Breaking Capacity
15 kA
Width
36 mm
This spec is not available in the specification table.
Depth
73 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
C60H-DC
This spec is not available in the specification table.
Length
81 mm
This spec is not available in the specification table.
Tripping Characteristics
Type C
This spec is not available in the specification table.
Circuit Breaker Type
Residential MCB
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Reset Actuator Type
Toggle Switch
This spec is not available in the specification table.
Rated DC Voltage
500 V
This spec is not available in the specification table.
Product Description
AU $ 204.39
Quantity:
EA
