Schneider Electric ATV630U30N4 Variable Speed Drive, 3 Kw, 3 Phase, 400 V Ac, 5.8 A, ATV63 Series

View Brand

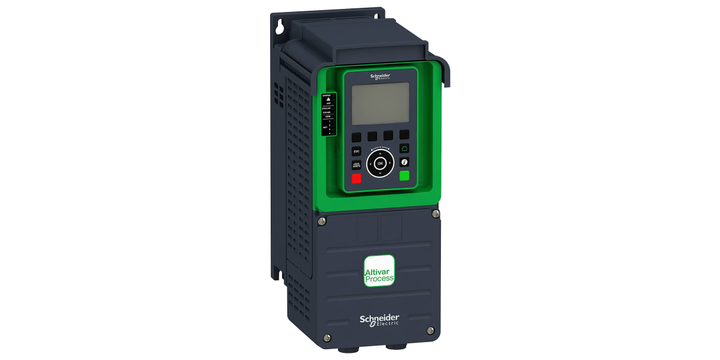

Schneider Electric ATV630U30N4 Variable Speed Drive, 3 Kw, 3 Phase, 400 V Ac, 5.8 A, ATV63 Series

Brand:	SCHNEIDER ELECTRIC
Model:	ATV630U30N4

Specifications

View other Inverter Drives dimensions or variations

Mounting Mode

Wall Mount

Standard

ATEX, CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, TUV, UL 508C

IP Degree of Protection

IP21

[Us] Rated Supply Voltage

400 V ac

Current Rating

5.8 A

Width

203 mm

Depth

350 mm

Device Application

Motor Control

Network Number of Phases

Output Frequency

0.1 → 500Hz

Series Name

ATV63

Overall Length

144 mm

Drive Type

Variable Frequency

For Use With

Asynchronous Motors, Synchronous Motors

Special Features

Embedded Power Measurement & Energy Dashboard, Energy Saving, Fluids Management Processing, Services Oriented Drive

Power Rating

3 kW

Field Bus Communication Type

Profibus

STO

Yes

Filter Included

Yes

Control Panel

Yes

Better World Product

Yes

Better World Verification

Green Premium

Better World Claim

Saves energy

Product Description

AU $ 2,319.91

Units	Discount	Unit Price
1	-	AU $ 2,319.91

Quantity:

This item is sold by

SG-4570630354
