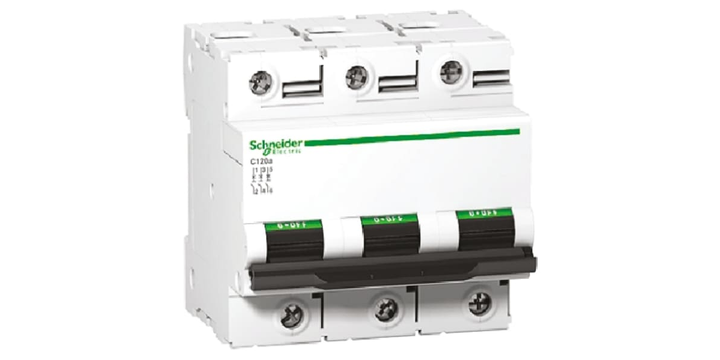

Schneider Electric A9N18469 Acti 9 C120H Mcb, 3P, 100A Curve C, 440V Ac, 375V Dc, 15 Ka, 30 Ka Breaking Capacity
Schneider Electric A9N18469 Acti 9 C120H Mcb, 3P, 100A Curve C, 440V Ac, 375V Dc, 15 Ka, 30 Ka Breaking Capacity
Brand: | SCHNEIDER ELECTRIC |
Model: | A9N18469 |
Specifications
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
[In] Rated Current
100 A
Breaking Capacity
15 kA, 30 kA
Width
73 mm
This spec is not available in the specification table.
Depth
81 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
C120H
This spec is not available in the specification table.
Tripping Characteristics
Type C
This spec is not available in the specification table.
Circuit Breaker Type
MCB
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Rated AC Voltage
440 V
This spec is not available in the specification table.
Rated DC Voltage
375 V
This spec is not available in the specification table.
Product Description
AU $ 470.91
