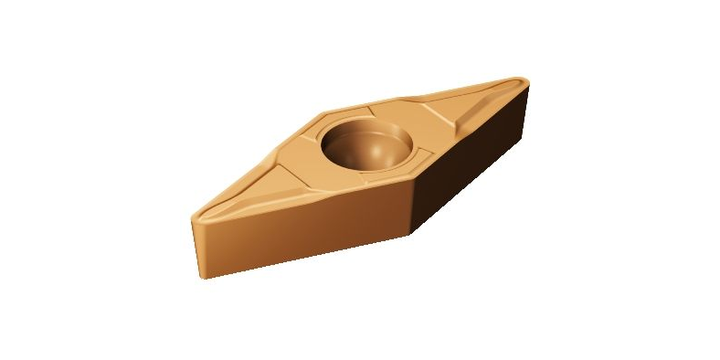

Sandvik Coromant Coroturnⓡ 107 Insert for Turning Vbmt 16 04 02-MF
Sandvik Coromant Coroturnⓡ 107 Insert for Turning Vbmt 16 04 02-MF
Brand: | Sandvik Coromant |
Model: | VBMT 16 04 02-MF 1125 |
Product Description
Sandvik Coromant Coroturnⓡ 107 Insert for Turning VBMT 16 04 02-MF
Insert size and shape (CUTINTSIZESHAPE)
VB1604
Inscribed circle diameter (IC)
9.525 mm
Insert shape code (SC)
V
Cutting edge effective length (LE)
16.406 mm
Corner radius (RE)
0.2 mm
Wiper edge property (WEP)
false
Hand (HAND)
N
Grade (GRADE)
1125
Substrate (SUBSTRATE)
HC
Coating (COATING)
PVD TIALN+ALCR2O3
Insert thickness (S)
4.763 mm
Clearance angle major (AN)
5 deg
Weight of item (WT)
0.011 kg
Sensor embedded property (SEP)
0
Life cycle state (LCS)
Released
Release pack id (RELEASEPACK)
08.2
AU $ 343.52
Quantity:
EA
MOQ of 10 EA
Bundle of 10 EA
